Product Overview
Features
- USB2.0 Hub - 4-Port
- Supports all data transfer rates up to 480Mbps
- Compact design with built-in cable (6-in.), perfect for travel
- Plug-and-play/hot-swappable allows you to add or remove a device at any time
- Diagnostic LEDs indicate power and port status
- Bus-powered or self-powered
- All four ports support USB Battery Charging ( BC ) specification v1.2, providing up to 1.5A for fast charging of mobile devices
- Includes External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A)
- Includes a 2.6ft USB-A to Micro-B USB 2.0 cable to connect the U222-004-R to the External Power Supply.
- Compatible with all major operating systems
Package Includes

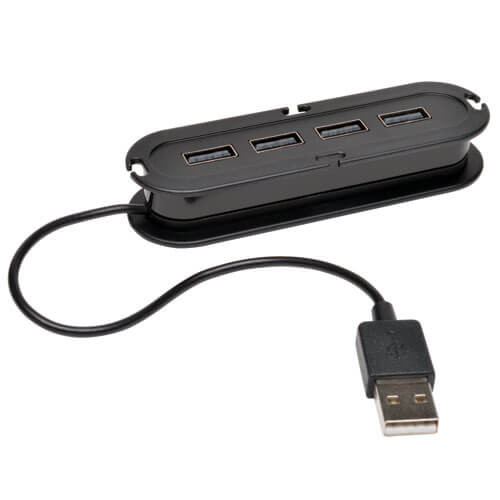

- U222-004-R USB2.0 4-Port Ultra-Mini Hub
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A)
- USB-A to Micro-B USB 2.0 Cable, 2.6-ft. (0.79 m)
Specifications
OVERVIEW
| UPC Code | 037332118127 |
| Product Type | Hub |
| Technology | USB 2.0 (High Speed) |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (4) USB A (FEMALE) |
| Data Ports Details | (4) USB-A - USB 2.0 |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
POWER
| AC Adapter | Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.35A |
| External Power Supply Output Specs (V / A) | 5V / 2A |
CHARGING
| Charging Ports Details | Any of the 4 ports |
| Charging Ports | (4) USB-A: 5V 1.5A (7.5W) |
| Charging Ports / Amps | (4) 1.5A |
PHYSICAL
| Material of Construction | Plastic |
| Color | Black |
| Cable Length (ft.) | 0.5 |
| Shipping Dimensions (hwd / in.) | 1.00 x 4.00 x 5.10 |
| Shipping Weight (lbs.) | 0.30 |
CONNECTIONS
| Number of Ports | 4 |
| Side A - Connector 1 | USB A (MALE) |
| Side B - Connector 1 | (4) USB A (FEMALE) |
STANDARDS & COMPLIANCE
| Certifications | RoHS, REACH, WEEE, FCC, NOM |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
