Product Overview
Overview

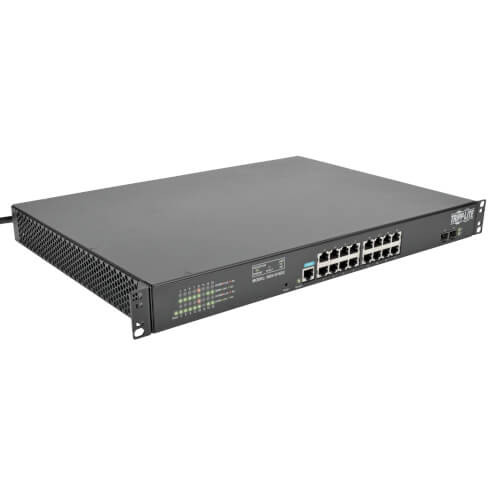

The energy-efficient NSS-G16D2 16-Port Gigabit L2 Web-Smart Managed Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
This switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The rear panel contains eight NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU’s maximum load rating.
The NSS-G16D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
This switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.
The rear panel contains eight NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU’s maximum load rating.
The NSS-G16D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
Features
Enterprise Managed Network Switch
- 16 twisted-pair RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- Automatic MDI/MDIX cross-over detection
- 36 Gbps switching capacity (2 Gbps per port with full duplex)
- Easy-to-read LEDs indicate connection and activity status for each port
- Supports 10k jumbo frames
- Supports MAC address auto-learning and auto-aging up to 16,000 addresses
- Advanced Enterprise level, L2 management features
- Built-in Ethernet network interface allows full remote access for monitoring, configuration and control and notifications via web browser
- VLAN, trunking and other features improve switch’s and network’s efficiency and performance
- 8 NEMA 5-15R rear outlets supply continuous power to connected devices
- 3860 joules of Isobar surge suppression
- Front-panel LEDs indicate protection, fault, and line status
- 40–80 dB EMI/RFI noise reduction
- Connect two SFP (mini-GBIC) transceiver modules for uplinking to other switches via optical fiber or copper
- LEDs indicate interface traffic
- Automatically shifts unused ports to low power state without interrupting network connection
- Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w, 802.3ad and 802.3az standards
- Compatible with EIA-standard 19 in. racks and rack enclosures
- Fanless metal housing for silent operation
- NEMA 5-15P plug with 6 ft. AC power cord
Package Includes
- NSS-G16D2 16-Port Gigabit L2 Managed Network Switch
- Rack-mounting hardware
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332195470 |
| Product Type | Switch/PDU Combination |
| PDU Type | Basic |
INPUT
| Electrical Consumption (Max) | 30W |
| PDU Plug Type | NEMA 5-15P |
| Voltage Compatibility (VAC) | 120 |
| Input Phase | Single-Phase |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length (ft.) | 6 |
OUTPUT
| Output Circuit Breakers | 12A |
| Output Receptacles | (8) 5-15R |
USER INTERFACE, ALERTS & CONTROLS
| Switches | 2 included switches enable HARD factory reset and SOFT factory reset options |
| LED Indicators | Power LED (Green for Power On); Two LEDs per RJ45 port (Green indicates 10/100Mbps link; Amber indicates 1000Mbps link; LEDs flash to indicate port activity); Two LEDs indicate SFP connection (Green); One LED indicates system status (Green); Set of 3 LEDs indicate surge suppression status (Green: Protection Present / Red: Fault / Green: Line OK) |
SURGE / NOISE SUPPRESSION
| AC Suppression Joule Rating | 3860 |
| Protection Modes | L-N, L-G, N-G |
| Clamping Voltage (RMS) | 330 |
| EMI / RFI Filtering | 40-80dB |
PHYSICAL
| Primary Form Factor | Rackmount |
| Color | Black |
| Housing Color | Black |
| Minimum Required Rack Depth (inches) | 15.4 |
| PDU Form Factor | Horizontal (1U) |
| Shipping Dimensions (hwd / in.) | 4.70 x 17.00 x 20.70 |
| Shipping Weight (lbs.) | 10.80 |
| Unit Dimensions (hwd / in.) | 1.71 x 17.32 x 12.4 |
| Unit Weight (lbs.) | 8.49 |
| Rack Units | 1 |
ENVIRONMENTAL
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| Relative Humidity | 5 to 95% (Non-condensing) |
| Operating Elevation (ft.) | 10000 |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Power Consumption (Watts) | 30 |
| Operating Elevation (m) | 3000 |
| Fans (Type/Quantity) | Fanless |
| Power Consumption Detail | PDU supports up to 12A total; Network switch consumes up to 30 watts |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
| Network Compatibility Details | Auto-negotiable |
| Switching Capacity | 36 Gbps |
| Switching Capacity Details | 2 Gbps per port with full duplex |
CONNECTIONS
| Ports | 18 |
| RJ45 Ports | 16 |
| RJ45 Ports Detail | 16x 10/100/1000BASE-T; 1x Console |
| SFP Uplink Ports | 2 |
| SFP Uplink Ports Detail | 2x Mini-GBIC SFP Uplinks |
| PoE Supported Ports | 0 |
| Network Switch Ports | (16) 10/100/1000 (RJ45); (2) Dedicated SFP; (1) Console (RJ45) |
FEATURES & SPECIFICATIONS
| MAC Addresses | 16000 |
| Jumbo Frames | 10000 |
| OSI Layer | Layer 2 |
| Console Port | Yes |
| MAC Auto Learning | Yes |
| RMON | Yes |
| SNMP | Yes |
| Storm Control | Yes |
| DHCP Snooping | Yes |
| Auto MDI/MDIX Crossover Detection | Yes |
STANDARDS & COMPLIANCE
| Certifications | Compliant standards: IEEE 802.3ab (1000BASE-T GIGABIT ETHERNET), IEEE 802.3i (10BASE-T ETHERNET), IEEE 802.3u (100BASE-T ETHERNET), IEEE 802.3x (FULL DUPLEX/FLOW CONTROL), IEEE 802.3 (NWAY AUTO-NEGOTIATION), 802.1Q (TAGGED VLAN), 802.1D (STP), 802.1w (RSTP), 802.3ad (LACP), 802.3az (ENERGY EFFICIENT ETHERNET) |
| Approvals | Tested to: UL 60950-1, UL 1449 3rd Edition, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, REACH, NOM |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
