Product Overview
Overview

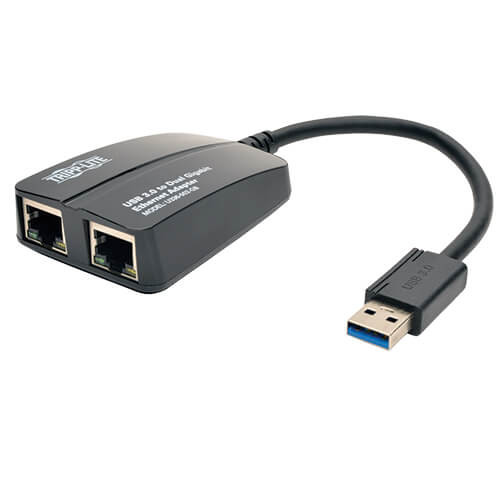

Tripp Lite's U336-002-GB USB 3.0 to Dual Gigabit Ethernet Adapter allows you to quickly add two Gigabit Ethernet ports to your computer through a single USB 3.0 port - no need to open up your computer case to add an internal Ethernet card. Ideal for network administrators that require dual-homed or multi-homed host systems. Can also be used as a 2-port network switch; one port connects a computer to a network and a second port shares a network connection with another computer. The adapter's compliance with USB 3.0 (5Gbps) ensures true Gigabit network speed without any compromise. Furthermore, the adapter is compact and USB bus-powered, requiring no external power adapter.
Features
- Add two Gigabit Ethernet ports via the USB 3.0 port on your Chromebook, laptop, or other computer
- Can be used as a 2-port network switch; one port connects a computer to a network and a second port shares a network connection with another computer
- Compliant with IEEE 802.3i (10BASE-T Ethernet), 802.3u (100BASE-TX Fast Ethernet), 802.3ab (1000BASE-T GbE) and IEEE 802.3az (Energy Efficient Ethernet) standards
- Supports full-duplex with IEEE 802.3x flow control and half-duplex with back-pressure flow control
- Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) and TCP large segment offload (LSO) to reduce CPU loading
- Suspend mode and remote wakeup is supported via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin
- Supports Jumbo Frames up to 4K
- Supports VLAN tagging
- Supports Wake-on-LAN
- Features a Micro-USB port for connecting to a power source when your computer or laptop is powered off
System Requirements
- An available USB 3.0 port. Unit is backward compatible with USB 2.0, but at USB 2.0 speeds
- Compatible with Windows®, Mac®, Linux and Chromium Operating Systems
Package Includes
- USB 3.0 Dual Port Gigabit Ethernet Adapter
- Owner’s Manual
- Driver CD
Specifications
OVERVIEW
| UPC Code | 037332186911 |
| Technology | Cat5/5e; Cat6; USB 3.0 (SuperSpeed); USB |
INPUT
| Bus Powered | Yes |
| Product Length (in.) | 10 |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Green (Link); Yellow (Activity) |
PHYSICAL
| Color | Black |
| Cable Jacket Rating | VW-1 |
| Material of Construction | Polycarbonate, ABS |
| Shipping Dimensions (hwd / in.) | 6.70 x 3.86 x 1.18 |
| Shipping Weight (lbs.) | 0.25 |
| Unit Dimensions (hwd / in.) | 0.9 x 3 x 2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.12 |
ENVIRONMENTAL
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| BTUs | 6.4 BTU/Hr |
| Power Consumption (Watts) | 1.9 |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
| IEEE Standards Supported | 802.3; 802.3u; 802.3az |
CONNECTIONS
| Ports | 2 |
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | (2) RJ45 (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | Yes |
| Auto MDIX Support | Yes |
| Full Duplex Support | Yes |
| Suspend Mode Support | Yes |
| Remote Wakeup Support | Yes |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
