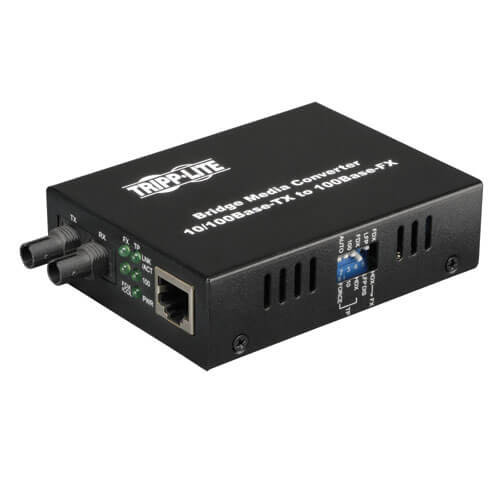

Tripp Lite's N784-001-ST, 10/100 Multimode Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable). Tripp Lite
Features
Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
Auto MDI/MDI-X
UTP port auto-senses network speed
Switch selectable half or full duplex operation on the fiber port
Fiber lengths up to 2Km
2 Power Choices - AC-DC Adapter or USB
5 LED Function lights
Uses 62.5/125 or 50/125 Multimode cable
3.75"L x 2.75"W x 1"H
Wavelength: 1310nm
Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
Package Includes
10/100 Multimode Media Converter, UTP - ST
External Power Supply with NEMA 1-15P Plug ( 100-240V )
Owner's Manual
Specifications
OVERVIEW
UPC Code
037332130907
Product Type
Fiber to Ethernet
Technology
Cat5/5e; Multimode
Mode Type
Multimode
DISPLAY
Accessories (Included)
External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
NETWORK
Network Ports
RJ45 (FEMALE); ST (FEMALE)
POWER
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
External Power Supply Input Specs (V / Hz / A)
100-240V, 50/60Hz, 1.2A
External Power Supply Output Specs (V / A)
5V, 2A
External Power Supply Cord Length (ft.)
4.53
External Power Supply Cord Length (m.)
1.38
DC Barrel Plug
OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
External Power Supply Plug(s)
NEMA 1-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
PWR (Power LED), FX LNK/ACT (Fiber port connection indicator), FX FDX/COL (Full/half duplex indicator), TP LNK/ACT (Copper port connection indicator), TP 100 (10/100 Mbps Speed Indicator)
