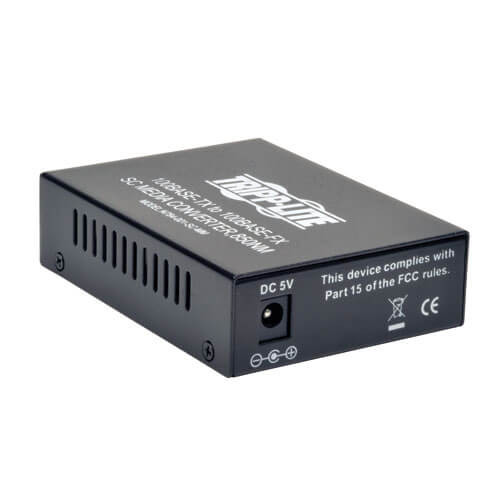

Tripp Lite's N784-001-SC-MM 10/100 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
Features
10/100 UTP to SC Multimode Fiber converter
Up to 550M ( 1800ft ) range
Auto-detects Full / Half Duplex Transfer Mode
Auto Negotiation MDI / MDI-X
6 performance monitoring LEDs
850nm wavelength
Small, compact design
Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
System Requirements
10/100 Ethernet Network
Multimode SC Fiber cable
Package Includes
10/100 SC Multimode Media Converter, 550M, 850nm
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; 5V, 1.2A)
User Manual
Specifications
OVERVIEW
UPC Code
037332183934
Product Type
Fiber to Ethernet
Technology
Cat5/5e; Multimode
Mode Type
Multimode
DISPLAY
Accessories (Included)
External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
NETWORK
Network Ports
RJ45 (FEMALE); SC (FEMALE)
POWER
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
External Power Supply Input Specs (V / Hz / A)
100-240V, 50/60Hz, 1.2A
External Power Supply Output Specs (V / A)
5V, 2A
External Power Supply Cord Length (ft.)
4.53
External Power Supply Cord Length (m.)
1.38
DC Barrel Plug
OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
External Power Supply Plug(s)
NEMA 1-15P North America
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
PWR (Power LED), L/A (Fiber port connection indicator), SD (Fiber signal indicator), SPD (Network speed), TP-L/A (Copper port connection indicator), FDX/COL (Full Duplex/Half Duplex)
