Product Overview

Features

Fast Charging

16 USB ports provide fastest charging supported by each device, up to 2.4A per port
Recommended for iPad, Android, Surface and Kindle tablets
Also charges mobile phones and other USB devices
Fits tablets with cases (up to 16.5 x 10.5 x 1.5 in. with cord)
10-ft. (3.05 m) AC input cord with NEMA 5-15P plug reaches distant outlets

Convenient Syncing

USB uplink port connects to host computer for wired syncing
Supports wireless syncing and simultaneous syncing/charging (up to 1.5A per port during wired syncing)

Comprehensive Protection

Sturdy steel construction and powder-coated finish promote long-term durability
Doors lock with included keys to help prevent device theft, damage or tampering
3-point locking mechanism latches doors at top, middle and bottom
Built-in hasp and user-supplied padlock can replace or supplement built-in lock
Rear ports accommodate user-supplied bicycle cable or chain lock
Flow-through ventilation helps prevent devices from overheating
Protective shelf specially coated to avoid device scratches and scuffs
Cord access ports with rubber grommets protect against abrasions
Solid top work surface helps avoid accidental drips and spills that could damage devices

Clutter-Reducing Organization

USB ports and charging cords store out of sight
Shelf includes charging cord access ports for each device
Toolless trim panel permits quick access to cords

Flexible Configuration

Ships fully assembled for quick, easy installation
Supports mounting to wall, desk, table, counter or floor
Split front doors open 180 degrees for improved device and service access
Removable dividers accommodate thicker devices like battery chargers
Firmware upgrade port for future updates
Converts to mobile cart with optional CSHANDLEKIT2 (sold separately)

Package Includes

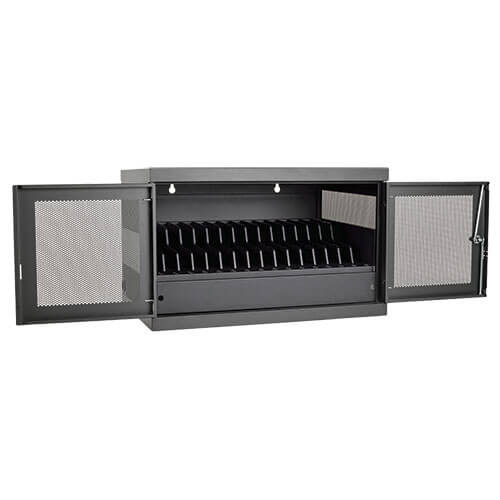

CSC16USB 16-Device USB Charging Station Cabinet, Black
(2) Keys
Owner’s manual

Specifications

OVERVIEW

UPC Code	037332194640
Product Type	Multi-Device Charger
Charging Form Factor	Stationary Cabinet
Functions	Charge; Secure; Sync
Device Compatibility	Tablet
Device Slots	16

INPUT

Nominal Input Voltage(s) Supported	120V AC
Voltage Compatibility (VAC)	110; 120
Input Frequency	50 / 60 Hz (auto-select)
Input Plug Type	NEMA 5-15P
Input Cord Length (ft.)	10

POWER

Power Consumption (Watts)

CHARGING

Number of Charging Ports	16
Total Charging Amps	40A
Total Charging Watts	200
Charging Method	USB
Charging Port Type	USB A (FEMALE)
Charging Ports Details	Pass through
Charging Ports / Amps	(16) 2.4A
Overcharge Protection	Yes
Charging Amps per Port	2.4A

PHYSICAL

Material of Construction	Steel
Color	Black
Charging Station Form Factor	Stationary Cabinet
Shipping Dimensions (hwd / in.)	24.53 x 23.62 x 33.66
Shipping Weight (lbs.)	112.00
Slot Dimensions (hwd / in.)	10.6 x 1.5 x 15.4
Unit Dimensions (hwd / in.)	18.8 x 30.33 x 21.6
Unit Weight (lbs.)	84.66
Number of Shelves	1

FEATURES & SPECIFICATIONS

Cord Management	Yes
EMI/RFI Line Noise Protection	Yes
Locking	Yes
Lock Type	Key
Built-In Circuit Breaker	Yes
Overcurrent Protection	Yes
Flow-Through Ventilation	Yes
UV Sterilization	No

STANDARDS & COMPLIANCE

Certifications	Tested to EIA-310-E, UL60950, FCC & IEC Class B
Approvals	RoHS
NOM (Mexico)	Tested to NOM (Mexico)

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty
