Product Overview

Features

Fast Charging

32 USB ports provide fastest charging supported by each device, up to 2.4A per port
Recommended for iPad®, Android™, Surface™ and Kindle™ tablets
Also charges mobile phones and other USB devices
Fits tablets with cases (up to 16.5 x 10.5 x 1.5 in. with cord)
10-ft. (3.05 m) AC input cord with NEMA 5-15P plug reaches distant outlets

Convenient Syncing

USB uplink port connects to host computer for wired syncing
Supports wireless syncing and simultaneous syncing/charging (up to 1.5A per port during wired syncing)

Comprehensive Protection

Sturdy steel construction and powder-coated finish promote long-term durability
Doors lock with included keys to help prevent device theft, damage or tampering
3-point locking mechanism latches doors at top, middle and bottom
Built-in hasp and user-supplied padlock can replace or supplement built-in lock
Rear ports accommodate user-supplied bicycle cable or chain lock
Flow-through ventilation helps prevent devices from overheating
Protective shelves specially coated to avoid device scratches and scuffs
Cord access ports with rubber grommets protect against abrasions
Solid top work surface helps avoid accidental drips and spills that could damage devices

Clutter-Reducing Organization

USB ports and charging cords store out of sight
Shelves include charging cord access ports for each device
Toolless trim panel permits quick access to cords

Convenient Mobility

Large swivel casters with non-marking wheels improve ride over uneven surfaces
Casters lock to help prevent unwanted movement at rest
Reversible wide-grip handle assists cart control
Reversible cord wrap keeps input cord out of the way when moving cart
Compact cart fits in same space as typical utility cart

Flexible Configuration

Ships ready for quick, easy installation—just attach handle and cord wrap
Split front doors open 180 degrees for improved device and service access
Rear-panel mounting slots support optional wall-mount installation
Removable dividers accommodate thicker devices
Firmware upgrade port for future updates

Package Includes

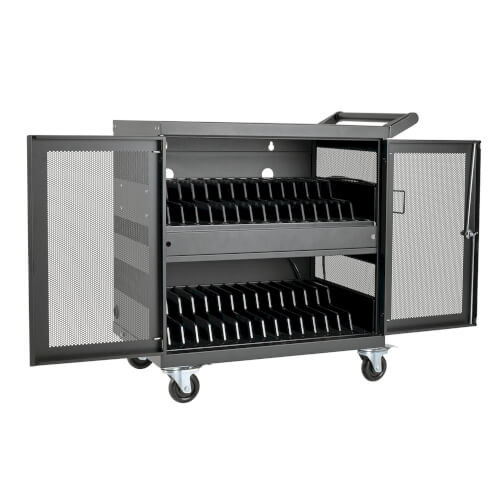

CSC32USB 32-Device USB Charging Station Cart, Black
Cart handle
Input cord wrap
Hex key
10-ft. (3.05 m) AC input cord
Mounting hardware for handle and cord wrap
(2) Keys
Owner's manual

Specifications

OVERVIEW

UPC Code	037332194688
Product Type	Multi-Device Charger
Charging Form Factor	Mobile Cart
Functions	Charge; Secure; Sync
Device Compatibility	Tablet; Phone
Device Slots	32

INPUT

Nominal Input Voltage(s) Supported	120V AC
Voltage Compatibility (VAC)	110; 120
Input Frequency	50 / 60 Hz (auto-select)
Input Plug Type	NEMA 5-15P
Input Cord Length (ft.)	10

POWER

Power Consumption (Watts)

112

CHARGING

Number of Charging Ports	32
Total Charging Amps	80A
Total Charging Watts	400
Charging Method	USB
Charging Port Type	USB A (FEMALE)
Charging Ports Details	Pass through
Charging Ports / Amps	(32) 2.4A
Overcharge Protection	Yes
Charging Amps per Port	2.4A

PHYSICAL

Material of Construction	Steel
Color	Black
Charging Station Form Factor	Mobile Cart
Shipping Dimensions (hwd / in.)	39.96 x 23.62 x 33.66
Shipping Weight (lbs.)	169.00
Slot Dimensions - Bottom (hwd / in.)	10,5 x 1,5 x 15,4
Slot Dimensions - Top (hwd / in.)	10,5 x 1,5 x 15,4
Unit Dimensions (hwd / in.)	36.1 x 34.8 x 21.6 (with handle installed)
Unit Weight (lbs.)	130.67
Number of Shelves	2

FEATURES & SPECIFICATIONS

Cord Management	Yes
EMI/RFI Line Noise Protection	Yes
Locking	Yes
Lock Type	Key
Built-In Circuit Breaker	Yes
Overcurrent Protection	Yes
Flow-Through Ventilation	Yes
UV Sterilization	No

STANDARDS & COMPLIANCE

Certifications	Tested to EIA-310-E, FCC & IEC Class B, UL 60950 (Power Component)
Approvals	RoHS
NOM (Mexico)	Tested to NOM (Mexico)

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty
