Description

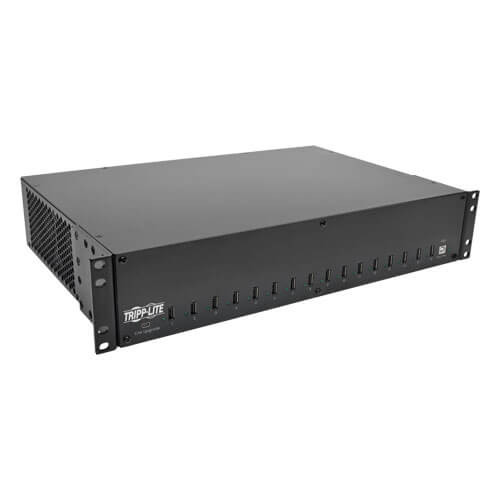

Charges Up to 16 Tablets, Smartphones and Other USB Devices
- Recommended for schools, offices and other environments where multiple USB devices are used
- Compatible devices include iPad, iPod, iPhone and Android tablets and smartphones
- Provides up to 5V, 2.4A (12W) of charging power to each port
- LED indicators signal ports in use
- Backward compatible with previous USB generations
- Supports data transfer rates up to 480 Mbps
Also Syncs Devices via Connected Computer
- Syncs USB devices using its compatible software, such as iTunes or Apple Configurator
- Included USB cable connects USB-B port and computer's USB-A port
Mini-USB Firmware Port
- Enables future software upgrades to support newer devices
Easy Installation and Connection
- Mounts in 2U of EIA-standard 19 in. rack using included hardware
- Also installs on level surface using included rubber feet
- Conveniently configures for professional, educational or personal installation
- 10-ft. (3.05 m) NEMA 5-15P to C13 power cord included
- Durable steel housing
TAA-Compliant
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Tablet, smartphone or other smart device with USB port
- Computer with available USB port (if syncing)
- U280-016-RM2U 16-Port USB Charging Station
- NEMA 5-15P to C13 power cord, 10 ft.
- USB 2.0 A/B cable, 6 ft.
- (4) Rubber mounting feet
- Mounting hardware
- Owner’s manual
OVERVIEW
| UPC Code | 037332192899 |
| Product Type | Multi-Device Charger |
| Charging Form Factor | Rack Mount |
| Functions | Charge; Sync |
| Device Compatibility | Tablet; Phone |
| Technology | USB 2.0 (High Speed) |
| Device Slots | 16 |
INPUT
| Nominal Input Voltage(s) Supported | 120V AC |
| Input Connection Type | IEC320-C14 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 50 / 60 Hz |
| Input Plug Type | C14 |
| Input Cord Length (ft.) | 10 |
| Input Current | 4A |
OUTPUT
| Output Capacity | 5V 40A (200W) |
POWER
| Power Consumption (Watts) | 56 |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Green (16x USB Charging, 1x Sync) |
CHARGING
| Number of Charging Ports | 16 |
| Total Charging Amps | 40A |
| Total Charging Watts | 200 |
| Charging Method | USB |
| Charging Port Type | USB A (FEMALE) |
| Charging Ports Details | Pass through |
| Charging Ports / Amps | (16) 2.4A |
| Overcharge Protection | Yes |
| Charging Amps per Port | 2.4A |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| Shipping Dimensions (hwd / in.) | 7.80 x 16.70 x 19.20 |
| Shipping Weight (lbs.) | 15.70 |
| Unit Dimensions (hwd / in.) | 3.4 x 17.32 x 11.9 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 10.1 |
| Number of Shelves | 0 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 95 F (0 to 35 C) |
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
| BTUs | 191.1 BTU/Hr (Full load) |
CONNECTIONS
| Number of Ports | 16 |
| Side A - Connector 1 | (16) USB A (FEMALE) |
| Side A - Connector 2 | USB B (FEMALE) |
| Side A - Connector 3 | MICRO-USB B (FEMALE) |
| Side B - Connector 1 | IEC-320-C14 |
FEATURES & SPECIFICATIONS
| Cord Management | No |
| Driver Required | No |
| EMI/RFI Line Noise Protection | Yes |
| Locking | No |
| Built-In Circuit Breaker | Yes |
| Overcurrent Protection | Yes |
| Flow-Through Ventilation | Yes |
| UV Sterilization | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to UL 60950-1: 2007, CAN/CSA-C22.2 No. 60950-1:07, IEC 60950, FCC & IEC Class B, NOM, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
