Product Overview
Features
Access and Control 2 Computers with One Keyboard/Mouse/Monitor
USB 2.0 Peripheral Sharing
Flexible Keyboard/Mouse Applications
Easy Plug-and-Play Setup and Use
- Recommended for home, office, gaming and multimedia applications
- Switch between computers using remote port selector, hotkeys or mouse wheel
- Supports video resolutions up to 1920 x 1200 (1080p)
- Supports 2.1-channel surround sound with full bass
- Listen to audio files on one computer while accessing the other
- Compliant with EDID and HDCP
- Built-in 4-ft. (1.22 m) HDMI, USB and audio cables
USB 2.0 Peripheral Sharing
- Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Works with multimedia keyboards and wireless keyboards and mice
- Supports Mac keyboard emulation
Easy Plug-and-Play Setup and Use
- Compatible with Windows, Mac and Linux
- No external power supply, software or drivers to install
- Switches automatically to other computer when one powers off
- Upgradable firmware
- Takes up no valuable desk space
System Requirements
- HDMI monitor
- USB keyboard
- USB mouse
- Computers with HDMI and USB ports
Package Includes

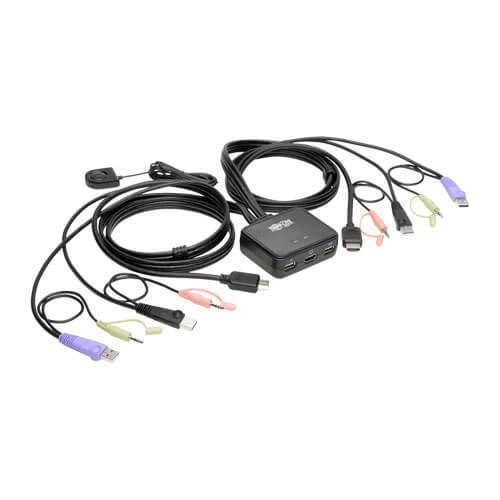

- B032-HUA2 2-Port USB/HD Cable KVM Switch
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332200396 |
| Technology | HDMI; Stereo Audio; USB 2.0 (High Speed) |
VIDEO
| Max Supported Video Resolution | 1920 x 1200 |
AUDIO
| Audio Specification | Up to 2.1-Channel Surround Sound |
INPUT
| Built-In Cable Length (ft.) | 4 |
| Built-In Cable Length (in.) | 48 |
| Redundancy - Dual Power Inputs | No |
| Bus Powered | Yes |
PHYSICAL
| Color | Black |
| Material of Construction | Plastic |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 2.40 x 6.70 x 9.40 |
| Shipping Weight (lbs.) | 1.20 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
COMMUNICATIONS
| IP Remote Access | No |
CONNECTIONS
| Ports | 2 |
| PC/Server Connections | USB; HDMI |
| Side A - Connector 1 | HDMI (FEMALE) |
| Side A - Connector 2 | (2) USB A (FEMALE) |
| Side A - Connector 3 | (2) 3.5MM (FEMALE) |
| Side B - Connector 1 | (2) HDMI (MALE) |
| Side B - Connector 2 | (4) USB A (MALE) |
| Side B - Connector 3 | (4) 3.5MM (MALE) |
FEATURES & SPECIFICATIONS
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| On-Screen Display (OSD) | No |
| Port Selection | Hotkey; Mouse; Remote Selector |
| Driver Required | No |
| Cat5 KVM Switch | No |
REMOTE ACCESS
| Modem Port | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
Features
Access and Control 2 Computers with One Keyboard/Mouse/Monitor
USB 2.0 Peripheral Sharing
Flexible Keyboard/Mouse Applications
Easy Plug-and-Play Setup and Use
- Recommended for home, office, gaming and multimedia applications
- Switch between computers using remote port selector, hotkeys or mouse wheel
- Supports video resolutions up to 1920 x 1200 (1080p)
- Supports 2.1-channel surround sound with full bass
- Listen to audio files on one computer while accessing the other
- Compliant with EDID and HDCP
- Built-in 4-ft. (1.22 m) HDMI, USB and audio cables
USB 2.0 Peripheral Sharing
- Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Works with multimedia keyboards and wireless keyboards and mice
- Supports Mac keyboard emulation
Easy Plug-and-Play Setup and Use
- Compatible with Windows, Mac and Linux
- No external power supply, software or drivers to install
- Switches automatically to other computer when one powers off
- Upgradable firmware
- Takes up no valuable desk space
System Requirements
- HDMI monitor
- USB keyboard
- USB mouse
- Computers with HDMI and USB ports
Package Includes
- B032-HUA2 2-Port USB/HD Cable KVM Switch
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332200396 |
| Technology | HDMI; Stereo Audio; USB 2.0 (High Speed) |
VIDEO
| Max Supported Video Resolution | 1920 x 1200 |
AUDIO
| Audio Specification | Up to 2.1-Channel Surround Sound |
INPUT
| Built-In Cable Length (ft.) | 4 |
| Built-In Cable Length (in.) | 48 |
| Redundancy - Dual Power Inputs | No |
| Bus Powered | Yes |
PHYSICAL
| Color | Black |
| Material of Construction | Plastic |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 2.40 x 6.70 x 9.40 |
| Shipping Weight (lbs.) | 1.20 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
COMMUNICATIONS
| IP Remote Access | No |
CONNECTIONS
| Ports | 2 |
| PC/Server Connections | USB; HDMI |
| Side A - Connector 1 | HDMI (FEMALE) |
| Side A - Connector 2 | (2) USB A (FEMALE) |
| Side A - Connector 3 | (2) 3.5MM (FEMALE) |
| Side B - Connector 1 | (2) HDMI (MALE) |
| Side B - Connector 2 | (4) USB A (MALE) |
| Side B - Connector 3 | (4) 3.5MM (MALE) |
FEATURES & SPECIFICATIONS
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| On-Screen Display (OSD) | No |
| Port Selection | Hotkey; Mouse; Remote Selector |
| Driver Required | No |
| Cat5 KVM Switch | No |
REMOTE ACCESS
| Modem Port | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
