Product Overview
Features

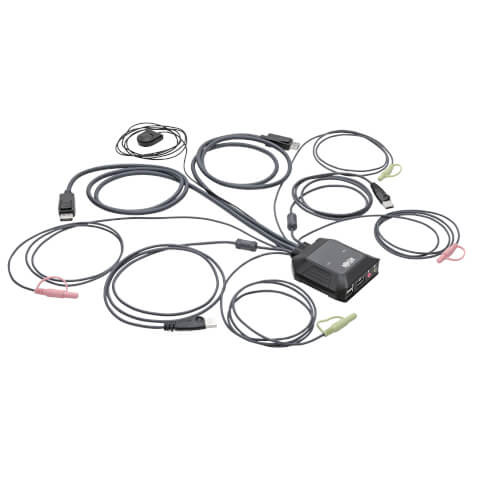

Connects 2 Computers to a Single Monitor, Keyboard and Mouse
This compact two-port NetDirector® KVM switch lets you access and control two desktop, laptop or notebook computers at the same time. Both computers share one DisplayPort monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. The B032-DPUA2 works with Windows, Mac and Linux.
Built-In Cables for Fast and Simple Setup
All necessary cables are built right into the KVM switch. Connect your monitor, keyboard, mouse, and speakers to the switch’s console ports. Then, connect the DisplayPort, USB and 3.5 mm audio cables to the appropriate ports on your computers. The plug-and-play KVM switch requires no software, drivers or external power supply, so you can connect and use it immediately. Use the built-in remote port selector for quick and easy toggling between computers. In addition, the remote port selector allows you to enable/disable your monitor's auto-detection mode preventing lost productivity while waiting for your monitor to turn back on. Green LEDs indicate which computer is currently selected.
Connect a USB Hub to Share Peripherals between Computers
By connecting a powered USB hub (not included) to the USB console mouse port, you’ll be able to share multiple USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between the two computers.
Transmits Crystal-Clear 4K Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready DisplayPort television, projector or monitor, connect the corresponding port to the display using a DisplayPort cable (such as Tripp Lite’s P580-Series DP cables, sold separately). The KVM switch supports Ultra HD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz.
System Requirements
- Computer(s) with DisplayPort and USB inputs
- DisplayPort monitor
- USB keyboard
- USB mouse
Package Includes
- B032-DPUA2 2-Port DisplayPort 1.1/USB KVM Switch
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332235978 |
| Technology | DisplayPort |
VIDEO
| Max Supported Video Resolution | 4096 x 2160 @30Hz |
INPUT
| Built-In Cable Length (ft.) | 4 |
| Built-In Cable Length (in.) | 48 |
| Bus Powered | Yes |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | (x2) Green |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 2.50 x 6.60 x 9.30 |
| Shipping Weight (lbs.) | 1.50 |
| Unit Dimensions (hwd / in.) | 1.2 x 3.31 x 3.28 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.77 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 122°F (0 - 50°C) |
| Storage Temperature Range | -4 to 140°F (-20 - 60°C) |
| Relative Humidity | 0%-80% RH, Non-Condensing |
COMMUNICATIONS
| IP Remote Access | No |
CONNECTIONS
| Number of Ports | 2 |
| PC/Server Connections | DisplayPort; USB |
| Side A - Connector 1 | (2) 3.5MM (FEMALE); DISPLAYPORT (FEMALE); (2) USB A (FEMALE) |
| Side B - Connector 1 | (4) 3.5MM (MALE); (2) DISPLAYPORT (MALE); (2) USB A (MALE) |
| Computer Keyboard and Mouse Interface | USB |
| Computer Monitor Interface | Displayport |
| Console Keyboard and Mouse Interface | USB |
| Console Monitor Interface | Displayport |
FEATURES & SPECIFICATIONS
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| Port Selection | Remote Selector |
| Displayport Specification | 1.1 |
| HDCP Specification | 1.4 |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Driver Required | No |
| Cat5 KVM Switch | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
