Product Overview
Features
Access and Control 2 Computers with One Keyboard/Mouse/Monitor
Independent USB 2.0 Peripheral Sharing
Flexible Keyboard/Mouse Applications
Easy Plug-and-Play Setup and Use
- Recommended for home, office, gaming and multimedia applications
- Switch between computers using remote port selector, hotkeys or mouse wheel
- Supports video resolutions up to 1920 x 1200 (1080p)
- Supports 2.1-channel surround sound with full bass
- Listen to audio files on one computer while accessing the other
- Compliant with EDID and HDCP
- Built-in 4-ft. (1.22 m) DVI, USB and audio cables
Independent USB 2.0 Peripheral Sharing
- Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Works with multimedia keyboards and wireless keyboards and mice
- Supports Mac and Sun keyboard emulation
Easy Plug-and-Play Setup and Use
- Compatible with Windows, Mac and Linux
- No external power supply, software or drivers to install
- Switches automatically to other computer when one powers off
- Upgradable firmware
- Takes up no valuable desk space
System Requirements
- DVI monitor
- USB keyboard
- USB mouse
- Computers with DVI and USB ports
Package Includes

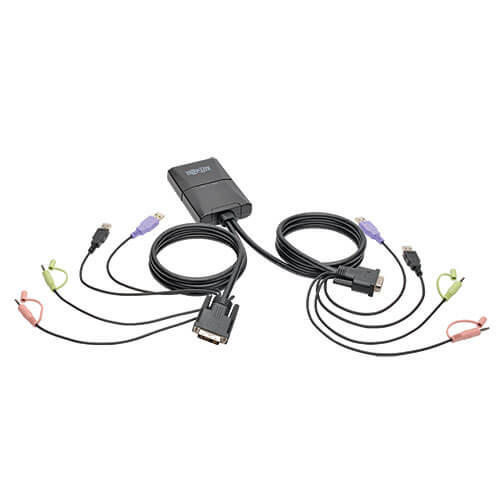

- B032-DUA2 2-Port USB/DVI Cable KVM Switch
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332200365 |
| Max CPU | 2 |
| Technology | DVI; Stereo Audio; USB 2.0 (High Speed) |
POWER
| Power Consumption (Watts) | 3.05 |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 2.40 x 6.70 x 9.40 |
| Shipping Weight (lbs.) | 1.30 |
| Unit Dimensions (hwd / in.) | 1.04 x 4.45 x 3.01 |
| Unit Weight (lbs.) | 1.06 |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 122° F (0° to 50° C) |
| Storage Temperature Range | -4° to 140° F (-20° to 60° C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
COMMUNICATIONS
| IP Remote Access | No |
CONNECTIONS
| Number of Ports | 2 |
| PC/Server Connections | DVI; USB |
| Side A - Connector 1 | DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side A - Connector 2 | (2) USB A (FEMALE) |
| Side A - Connector 3 | (3) 3.5MM (FEMALE) |
| Side B - Connector 1 | (2) DVI-D SINGLE LINK (MALE) |
| Side B - Connector 2 | (4) USB A (MALE) |
| Side B - Connector 3 | (4) 3.5MM (MALE) |
FEATURES & SPECIFICATIONS
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| Cat5 KVM Switch | No |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
