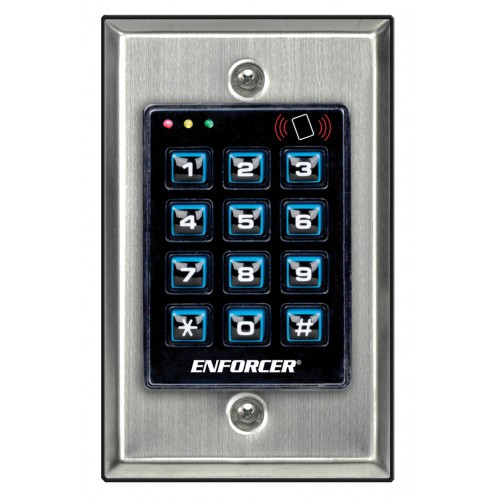

Seco-Larm SK-1131-SPQ Indoor Access Control Keypad
MSRP:
Was:
Now:
$71.99
(You save)
SKU:
SK-1131-SPQ
Shipping:
Calculated at Checkout
Before Ordering
Availability and lead times may vary. Request a quote if you need
to confirm availability before placing your order.
Manufacturer Information
Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.
Up to 1,000 possible user codes (000~999) and/or proximity cards programmable for output #1, 100 (001~100) for output #2, and 100 (001~100) for output #3
Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited time use (1~99 hours)
Output #1: Form C relay, 1A@30VDC max.
Output #2: Form C relay, 1A@30VDC max.
Output #3: Transistor ground, 100mA@24VDC
Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
Tamper output: N.C. Dry contact, 50mA@24VDC max.
Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
Mounts to a standard single-gang back box (surface-mount back box included)
All features are programmed directly from the keypad: No need for an external programmer
EEPROM Memory protects programmed information in case of power loss
Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, and 10 (01~09) for output #3
Duress code signals a silent alarm if an authorized user is forced to open the door under duress
Egress input lets users exit the premises without keying in the code
Door sensor input for anti-tailgating operation
Interlocking input for connecting to a second keypad
Keypad active or alarm output selectable via jumper
