Product Overview

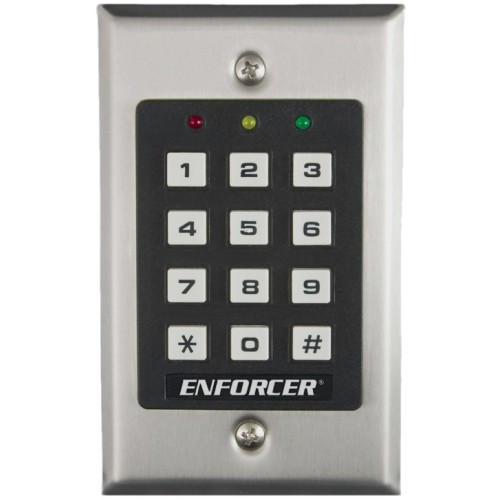

Access Control Keypad, 1,000 Users, 1 relay output (Indoor)
FEATURES
- Up to 1,000 possible user codes (4-8 digits)
- Output: Form C relay, 1A@30VDC max.
- Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours)
- Durable and attractive stainless-steel faceplate
- Programmable delayed egress input lets users exit the premises without keying in the code
- EEPROM Memory protects programmed information in case of power loss
- 12~24 VDC/VAC Auto-adjusting operation
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Mounts to a standard single-gang back box (surface-mount back box included)
- Programmable wrong-code lockout
- Real-time clock to auto-disable access at specific times
- All features are programmed directly from the keypad: No need for an external programmer
RESOURCES
Other Information
Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.
