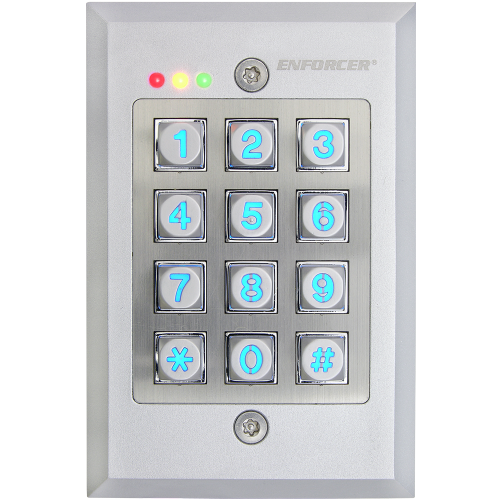

Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad

Seco-Larm SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad

$111.99
SKU:
SK-1123-FDQ
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Seco-Larm orders require a $300 combined minimum. Orders under $300 can be fulfilled with additional fees. Please contact us about possible orders under this amount.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

  • 12~24 VAC/VDC auto-adjusting operation
  • Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
  • Output #1: Form C relay, 1A@30VDC max.
  • Output #2: Transistor ground, 100mA@24VDC
  • Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output: N.C. Dry contact, 50mA@24VDC max
  • Mounts to standard single-gang back box
  • IP66 Weatherproof rating
  • Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
  • All features are programmed directly from the keypad: No need for an external programmer
  • EEPROM Memory protects programmed information in case of power loss
  • Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
  • Duress code signals a silent alarm if an authorized user is forced to open the door under duress
  • Egress input lets users exit the premises without keying in the code
  • Door sensor input for anti-tailgating operation
  • Interlocking input for connecting to a second keypad
