Description
DESCRIPTION

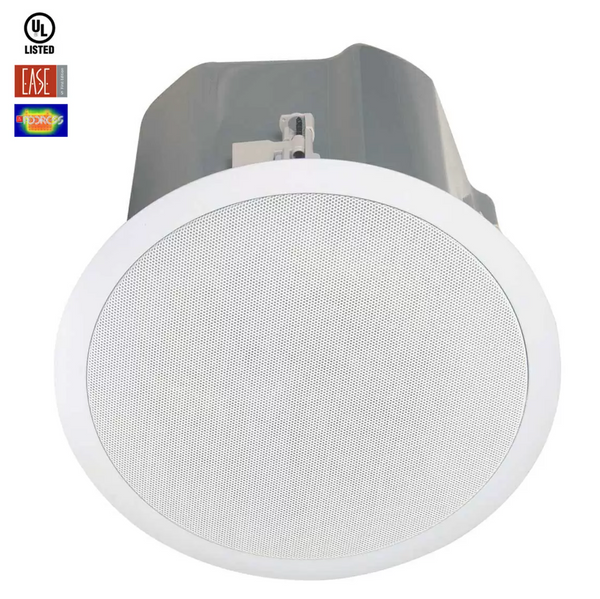

Model ES-82T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. The self-contained in-ceiling or in-wall speaker system with 8" coaxial driver has a high-frequency horn-loaded silk dome tweeter that provides the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker’s wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.
FEATURES
- Driver: 8 in. 120W coaxial driver
- Transformer: 120W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL minimum) transformer bypass position.
- Enclosure: Painted (grey) steel back-can with reversible mounting dogs
- Grille: Press-fit grille with scrim, pull-tool
- Mounting Aids: Plastic paint shield for driver, C-ring and support rails.
