Product Overview
DESCRIPTION

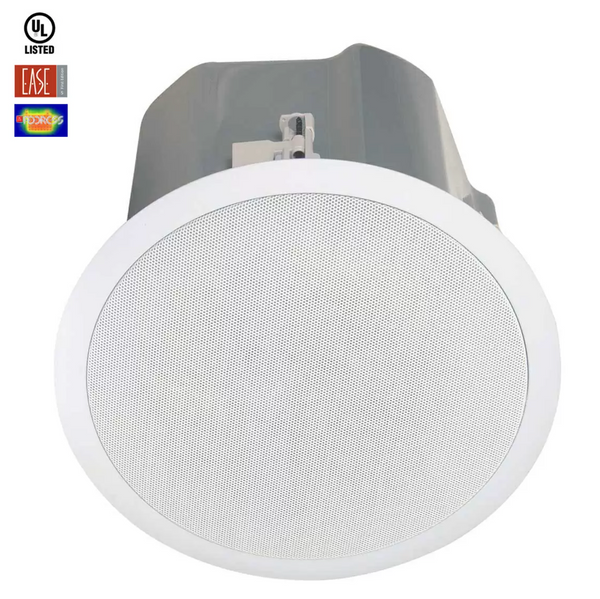

Coaxial compression speaker model ES-82CDT produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, and institutional applications. This self-contained in-ceiling or in-wall speaker system with 8-inch coaxial driver has a high-frequency horn-loaded compression driver that provides the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the controlled pattern dispersion is ideal for higher ceiling distributed speaker systems.
FEATURES
- Driver: 8 in. 150W coaxial driver
- Transformer: 120W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 8 ohm transformer bypass position.
- Enclosure: Painted (grey) steel back-can with reversible mounting dogs
- Grille: Press-fit grille with scrim, pull-tool
- Mounting Aids: Plastic paint shield for driver, C-ring and support rails.
