Product Overview

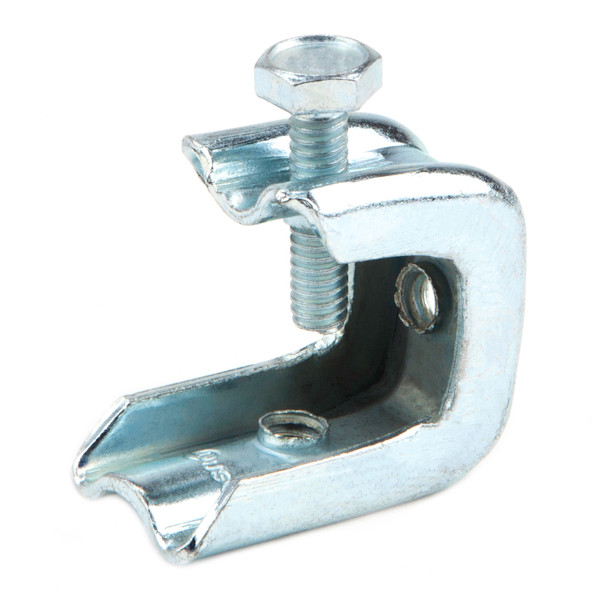

3/8'' Beam Clamp
Beam Clamps are secured to the outside of an I-beam, girder, or other structural member to provide a mounting base for conduit hangers or threaded rod.
Specifications
Physical Characteristics
Type
Beam Clamp
Rod Size
3/8''
Bolt Size
5/16'' x 1-3/8''
Size
3/8''
Maximum Jaw Opening (in)
3/4''
Length (in)
1-15/16''
Flange Width (in)
3/4''
Material
Carbon Steel
Finish
Zinc Plated
Fastening Hole
2
Packaging Details
Standard Qty
25
Master Qty
100
Price Per
100
Package Length
8.4
Package Width
5.9
Package Height
3.8
Net Weight
0.304
Package Weight
7.6
Performance Data
Maximum Load (lb)
50 lbs
Applications
I-beam, Girder or Other Steel Structural Members
Special Features
Tapped Threads Back and Bottom, High Strength Carbon Steel, Case Hardened Steel Bolt
For Use With
Threaded Rod
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
