Description

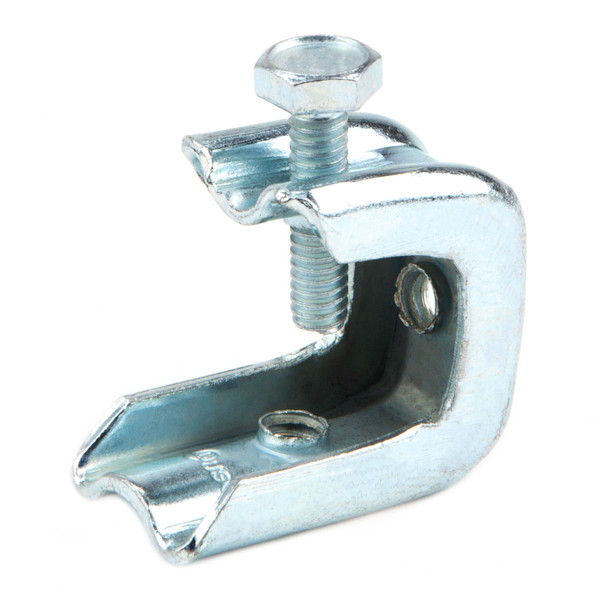

1/4'' Beam Clamp
Beam Clamps are secured to the outside of an I-beam, girder, or other structural member to provide a mounting base for conduit hangers or threaded rod.
Specifications
Physical Characteristics
Type
Beam Clamp
Rod Size
1/4''
Bolt Size
1/4'' x 1''
Size
1/4''
Maximum Jaw Opening (in)
5/8''
Length (in)
1-3/8''
Flange Width (in)
5/8''
Material
Carbon Steel
Finish
Zinc Plated
Fastening Hole
2
Packaging Details
Standard Qty
50
Master Qty
250
Price Per
100
Package Length
8.3
Package Width
5.4
Package Height
5.5
Net Weight
0.126
Package Weight
6.3
Performance Data
Maximum Load (lb)
50 lbs
Applications
I-beam, Girder or Other Steel Structural Members
Special Features
Tapped Threads Back and Bottom, High Strength Carbon Steel, Case Hardened Steel Bolt
For Use With
Threaded Rod
Certifications
RoHS Compliant
Yes
