Description

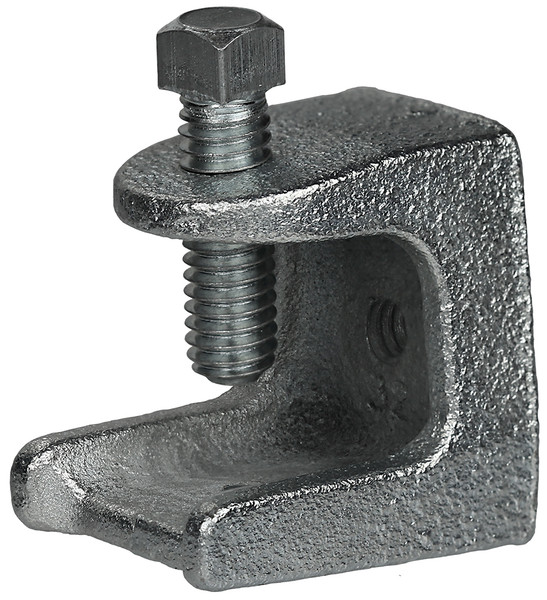

1/2'' Malleable Iron Beam Clamp
Malleable Beam Clamps are secured to the outside of an I-beam, girder, or other structural member to provide a mounting base for conduit hangers or threaded rod.
Specifications
Physical Characteristics
Type
Beam Clamp
Rod Size
1/2''
Bolt Size
3/8'' x 1-1/2''
Size
1/2''
Maximum Jaw Opening (in)
1-1/4''
Flange Width (in)
1-1/8''
Material
Malleable Iron
Finish
Zinc Plated
Fastening Hole
2
Packaging Details
Standard Qty
10
Master Qty
50
Price Per
100
Package Length
9.9
Package Width
5.3
Package Height
3.7
Net Weight
1.23
Package Weight
12.3
Performance Data
Maximum Load (lb)
600 lbs
Applications
I-beam, Girder or Other Steel Structural Members
Special Features
Tapped Threads Back and Bottom, High Strength Iron, Case Hardened Steel Bolt
For Use With
Threaded Rod
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
