Description

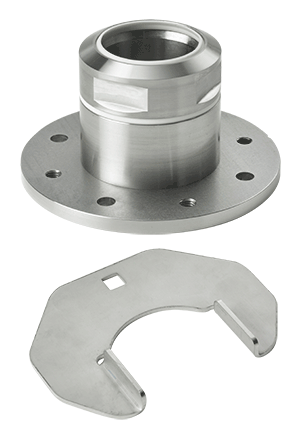

Syspend Sanitary HMI Swivel Base Bracket, 4x7x7, Brushed, SS304
- Type 304 polished stainless steel
- Includes 4 set screws that provide means of leveling the entire suspension system
- Surface mounting fasteners are not provided
- Syspend-Lok Wrench Head for attaching base bracket to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
- Not compatible with Syspend Sanitary HMI Base Bracket Cover
PRODUCT ATTRIBUTES
- Height: 3.52 in / 89 mm
- Width: 6.5 in / 165 mm
- Depth: 6.5 in / 165 mm
- Protection Rating: IP54; IP66; IP69K
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Polished
- Thickness: 0.45 in / 11.4 mm
- Weight: 7.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Sanitary HMI Swivel Base Bracket provides a means of attaching tube to the floor or a machine. Arm can be rotated or turned 330 degrees. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
BULLETIN NUMBER
VM9
