Description

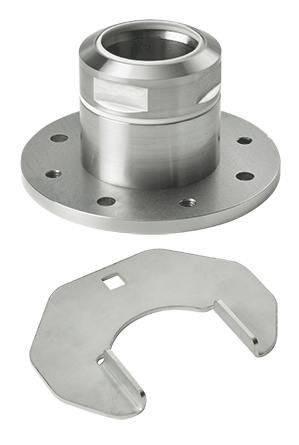

Syspend Sanitary HMI Fixed Base Bracket, 4x7x7, Brushed, SS304
- Type 304 polished stainless steel
- Includes 4 set screws that provide means of leveling the entire suspension system
- Surface mounting fasteners are not provided
- Optional Base Bracket Cover available to cover all exposed mounting hardware
- Syspend-Lok Wrench Head for attaching base bracket to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
PRODUCT ATTRIBUTES
- Height: 3.53 in / 90 mm
- Width: 6.5 in / 165 mm
- Depth: 6.5 in / 165 mm
- Protection Rating: IP54; IP66; IP69K
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Polished
- Thickness: 0.45 in / 11.4 mm
- Weight: 7.7 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Sanitary HMI Fixed Base Bracket provides a means of attaching a tube to a wall, floor or machine. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
BULLETIN NUMBER
VM9
