Product Overview

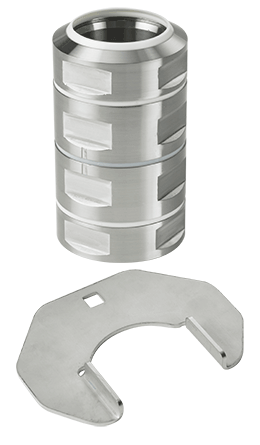

Syspend Sanitary HMI Swivel Coupling, 6.07x3.46x3.46, Brushed, SS304
- Type 304 polished stainless steel
- Syspend-Lok Wrench Head for attaching coupling to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
PRODUCT ATTRIBUTES
- Height: 6.07 in / 154 mm
- Width: 3.46 in / 88 mm
- Depth: 3.46 in / 88 mm
- Protection Rating: IP54; IP66; IP69K
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Polished
- Thickness: 0.45 in / 11.4 mm
- Weight: 7.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Sanitary HMI Swivel Coupling provides a means of attaching an enclosure to a tube, enabling 330-degree enclosure rotation. The Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
BULLETIN NUMBER
VM9
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
