Description

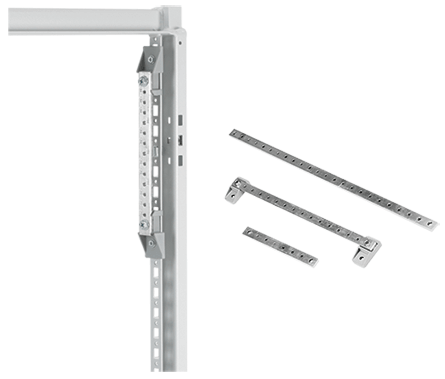

Grounding Bar System 600mm, fits 800mm Depth, Plated, Copper
- Bars are plated copper with M6 and M5 tapped holes; mounting bracket is insulated
- Fits all enclosures if mounted vertically; for depth-mounting, 200mm length fits 400mm deep frame, 400mm fits 600mm, and 600mm fits 800mm
- Mounting hardware and M5, M6 fasteners for grounding included
PRODUCT ATTRIBUTES
- Length: 600 mm / 23.62 in
- Hole/Screw Quantity, M6: 15/17
- Hole/Screw Quantity, M5: 30/31
- Color: Unpainted
- Finish: Plated
- Material: Copper
- Thickness: 0.25 in / 6.4 mm
- Weight: 2.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Three sizes of grounding bars and insulated mounting brackets are available. Bars include M6 and M5 tapped holes to provide a common point for grounding equipment. Fits all enclosures if mounted vertically. See table for horizontal mounting.
BULLETIN NUMBER
P20
