Product Overview

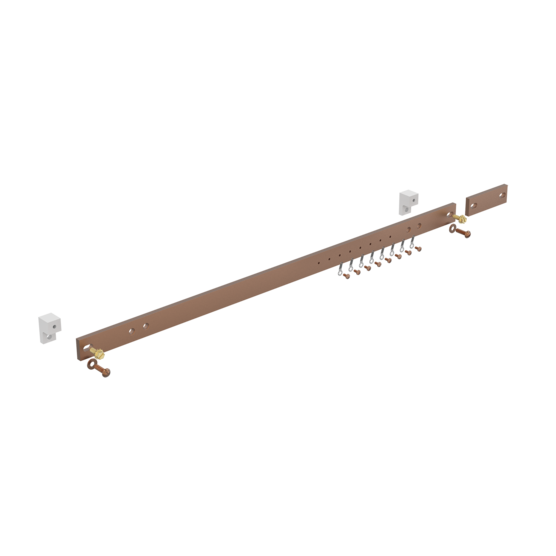

Horizontal Ground Bar Kits, 1.00x23.25, Polished, Copper
- Components specially designed to efficiently facilitate reliable connections
- Enable system to meet equipment manufacturer grounding requirements
- Components fit EIA 310-D-rated open frame racks
PRODUCT ATTRIBUTES
- Material: Copper
- Bar Size: 1.00 x 23.25 x .25 in / 25 x 591 x 6 mm
- Color: Unpainted
- Finish: Electroplated; Tinned / Electroplated; Tinned
- Thickness: 0.25 in / 6 mm
- Weight: 2.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
The Horizontal Ground Bar Kits mount horizontally on a rack, providing a convenient place to connect equipment grounds. The kits include a ground bar with mounting hardware; eight #6-32 x 14 machine screws, and eight #6 ring terminals.
These components meet open frame rack and cabinet bonding and grounding requirements for telecommunication room and data center applications.
