Hoffman PDW76F Proline Sloped-Front Window Door

Hoffman PDW76F Proline Sloped-Front Window Door

$1,484.00
SKU:
PDW76F
Shipping:
Calculated at Checkout
Product Type:
Doors
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Window Door For ProLine Sloped Front, fits 707/882x600mm, Lt Gray, Steel

  • Doors are hinged at lower edge and have quarter-turn latches
  • Ground stud and mounting hardware

PRODUCT ATTRIBUTES

  • Height: 27.56 in / 700 mm
  • Width: 23.62 in / 600 mm
  • Depth: 22.23 in / 565 mm
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 16 ga / 1.52 mm
  • Window Size: 559 x 432 mm / 22.00 x 17.00 in
  • Door Size: 705 x 592 mm / 27.77 x 23.30 in
  • Weight: 15.5 lb

ADDITIONAL PRODUCT DETAILS

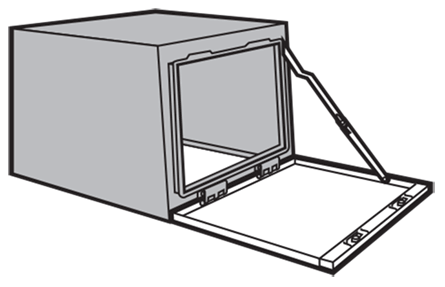

Solid doors are available with or without windows. Doors are hinged at lower edge and have quarter-turn latches. A stop arm assembly holds the door at 95 degrees (horizontal) from its closed position. Standard latch and insert options are available. Ground stud and mounting hardware are included. Seamless polyurethane foam-in-place gasket assures watertight and dust-tight seal. Window doors feature a maximum size .25-in.-thick polycarbonate window with a smoke-gray tint. Window is field-replaceable.

BULLETIN NUMBER

P9
