Description
Window Door For ProLine Sloped Front, fits 507/682x800mm, Lt Gray, Steel
- Doors are hinged at lower edge and have quarter-turn latches
- Ground stud and mounting hardware
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 31.5 in / 800 mm
- Depth: 22.23 in / 565 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 16 ga / 1.52 mm
- Window Size: 362 x 635 mm / 14.25 x 25.00 in
- Door Size: 504 x 792 mm / 19.86 x 31.17 in
- Weight: 16 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS

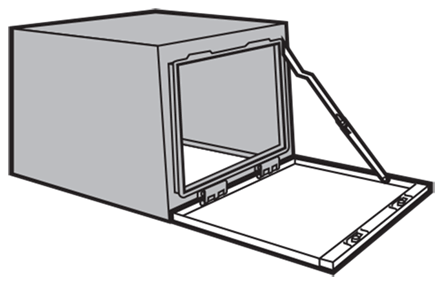

Solid doors are available with or without windows. Doors are hinged at lower edge and have quarter-turn latches. A stop arm assembly holds the door at 95 degrees (horizontal) from its closed position. Standard latch and insert options are available. Ground stud and mounting hardware are included. Seamless polyurethane foam-in-place gasket assures watertight and dust-tight seal. Window doors feature a maximum size .25-in.-thick polycarbonate window with a smoke-gray tint. Window is field-replaceable.
BULLETIN NUMBER
P9
