Description

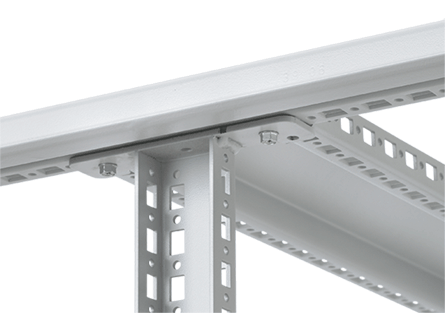

ProLine G2 Center Upright, 1800
- 12-gauge (2.5 mm) mild steel construction
- RAL 7035 textured light-gray polyester powder paint finish
- Features a 25-mm DIN standard, alternating rectangular and round hole pattern, which matches the vertical hole pattern of the frame
- Sold individually and include mounting hardware
- Can be used in 800-, 1000-, 1200- and 1600-mm wide frames to facilitate the installation of accessories for 600-mm wide frames and 19-in. rack accessories
PRODUCT ATTRIBUTES
- Fits Frame Height: 1800 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 12 ga / 2.66 mm
- Weight: 8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Center Uprights are vertical channels that attach to the frame (top and bottom). They are frequently used in wider frames to facilitate the installation of 19-in. rack accessories.
BULLETIN NUMBER
P40
