Description
Center Upright, fits 1800mm tall, Steel
- Furnished in pairs; mounting hardware included
- Constructed from 12 gauge steel; RAL 7035 textured light-gray polyester powder paint finish
- Can be used in 800-, 1000-, 1200- and 1600-mm wide frames to facilitate the installation of accessories for 600-mm wide frames and 19-in. rack accessories in wider frames.
- Vertical hole pattern matches the vertical hole pattern in the frame.
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Frame Height: 1800
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 15 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS

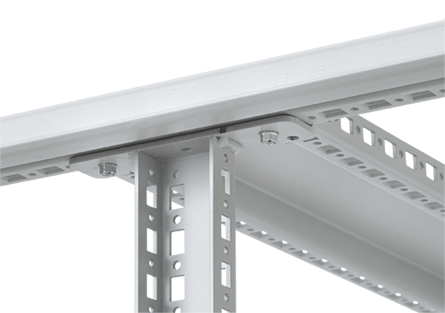

Center Uprights are vertical channels that attach to the frame (top and bottom). Can be used in 800-, 1000-, 1200- and 1600-mm wide frames to facilitate the installation of accessories for 600-mm wide frames and 19-in. rack accessories in wider frames. The vertical hole pattern matches the vertical hole pattern in the frame. Center uprights are furnished in pairs and include mounting hardware.
BULLETIN NUMBER
P20
