Description

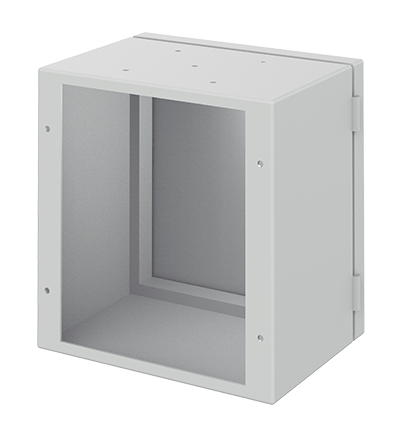

Rear-Access Body for InLine HMI Type 4, fits 250x250mm, Lt Gray, Steel
- Foam-in-place gasket is furnished
- Rear door has a quarter-turn latch with a standard slotted insert which accepts most InLine door accessories
- Ground stud is furnished
- Drill points on enclosure mark the location for pendant or pedestal mounting
PRODUCT ATTRIBUTES
- Height: 9.84 in / 250 mm
- Width: 9.84 in / 250 mm
- Depth: 4.72 in / 120 mm
- Protection Rating: IP66
- Material: Mild Steel
- Rear Door Opening: 232 x 232 mm / 9.13 x 9.13 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 5.67 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Rear-Access Body enclosure for InLine HMI has a rear-access door. Open front is configured to install optional fixed bezel or deep-hinged window kit.
BULLETIN NUMBER
C3
