Description

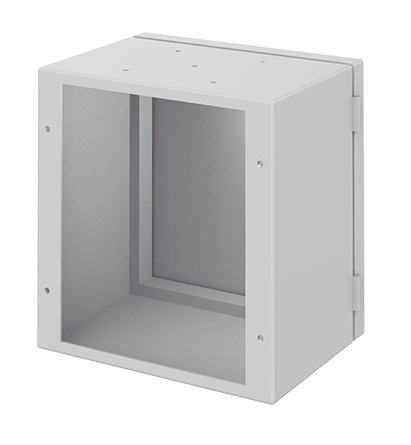

Rear-Access Body for InLine HMI Type 4, fits 166x160mm, Lt Gray, Steel
- Foam-in-place gasket is furnished
- Rear door has a quarter-turn latch with a standard slotted insert which accepts most InLine door accessories
- Ground stud is furnished
- Drill points on enclosure mark the location for pendant or pedestal mounting
PRODUCT ATTRIBUTES
- Height: 6.54 in / 166 mm
- Width: 6.3 in / 160 mm
- Depth: 4.72 in / 120 mm
- Protection Rating: IP66
- Material: Mild Steel
- Rear Door Opening: 148 x 142 mm / 5.82 x 5.58 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 3.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Rear-Access Body enclosure for InLine HMI has a rear-access door. Open front is configured to install optional fixed bezel or deep-hinged window kit.
BULLETIN NUMBER
C3
