Product Overview

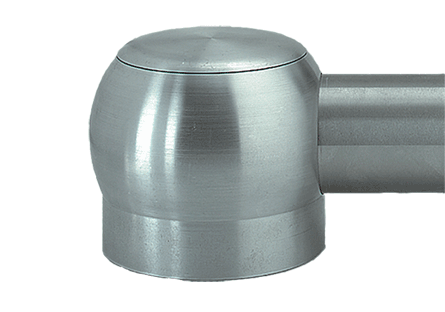

CS480 Wall Coupling, fits 48.3mm Tube, Brushed, SS304
- Coupling can rotate 340 degrees with rotation stop
- Torque preset at factory
- Gasket and mounting hardware are included
- Surface mounting fasteners are not provided
PRODUCT ATTRIBUTES
- Height: 6.97 in / 177 mm
- Width: 5.08 in / 129 mm
- Depth: 5.89 in / 150 mm
- Protection Rating: IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed
- Weight: 17.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
CS480 Wall Coupling mounts the enclosure directly to a wall or vertical surface, enabling 340-degree enclosure rotation. Cover to facilitate wiring. Maintenance-free bearings.
BULLETIN NUMBER
CCR6
