Product Overview

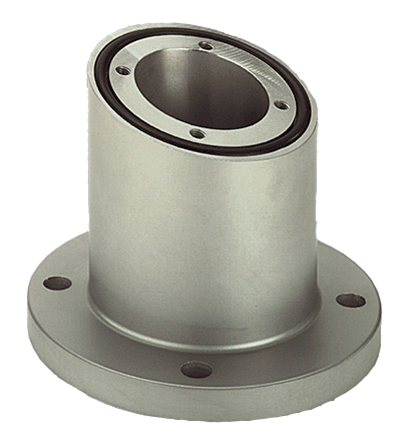

CS480 Base Bracket Angle Coupling, fits 48.3mm Tube, Brushed, SS304
- Enclosure is mounted at a 15-degree incline angle
- Gasket and mounting hardware are included
- Surface mounting fasteners are not provided
PRODUCT ATTRIBUTES
- Height: 3.35 in / 85 mm
- Width: 4.29 in / 109 mm
- Depth: 4.29 in / 109 mm
- Protection Rating: IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed
- Weight: 4.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
CS480 Base Bracket Angle Coupling mounts the enclosure directly to horizontal surfaces, enabling 15-degree enclosure tilt.
BULLETIN NUMBER
CCR6
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
