Description

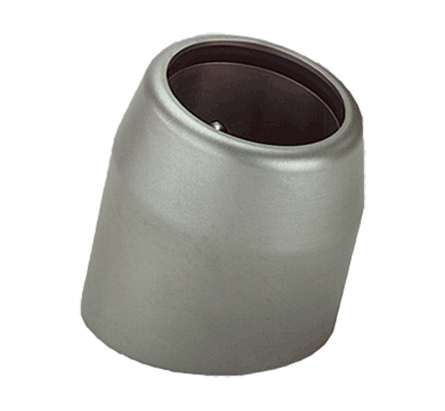

CS480 Angle Coupling, fits 48.3mm Tube, Brushed, SS304
- Enclosure is mounted at a 15-degree incline angle
- Gasket and mounting hardware are included
PRODUCT ATTRIBUTES
- Height: 3.15 in / 80 mm
- Width: 2.76 in / 70 mm
- Depth: 2.76 in / 70 mm
- Protection Rating: IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed
- Weight: 2.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
CS480 Angle Coupling mounts between a tube and the enclosure to provide tilt option for the machine operator. Rigid flange coupling with 15-degree angle of inclination for attaching enclosure.
BULLETIN NUMBER
CCR6
INDUSTRY STANDARDS
IEC 60529, IP66
