Description

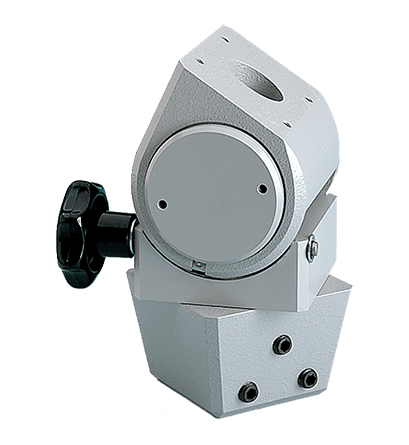

Compact Series 4 Swivel Tilt, fits 80x80mm, Lt Gray, Aluminum
- Coupling can rotate 300 degrees and tilt from horizontal to 30-degree
- Installation hardware, mounting fasteners and gasket included
PRODUCT ATTRIBUTES
- Height: 3.15 in / 80 mm
- Width: 3.15 in / 80 mm
- Material: Aluminum
- System: 80
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 0.47 in / 12 mm
- Weight: 6.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Compact Series 4 Swivel Tilt mounts between a vertical tube and the enclosure to provide both swivel and tilt options for the machine operator. Swivel allows 300-degree maximum rotation. Center opening for control cables. Tilt knob allows infinite tilt adjustment from horizontal to 30 degrees. Maximum load for overhead applications is 110 lb. (50 kg).
BULLETIN NUMBER
CS4
