Product Overview

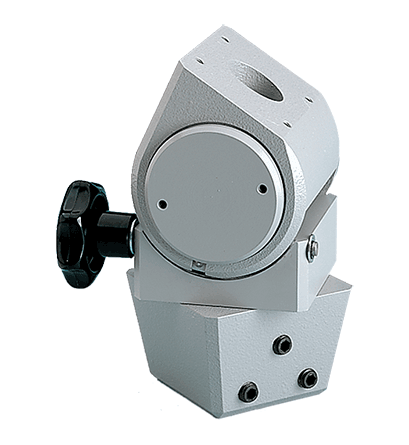

Compact Series 2 Swivel Tilt 90-Degree Elbow, fits 45x60mm, Lt Gray, Aluminum
- Coupling can rotate 300 degrees and tilt from horizontal to 30-degree
- Installation hardware, mounting fasteners and gasket included
PRODUCT ATTRIBUTES
- Height: 1.77 in / 45 mm
- Width: 2.36 in / 60 mm
- Material: Aluminum
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 6.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Compact Series 2 Swivel Tilt 90-Degree Elbow mounts between a horizontal tube and the enclosure to provide both swivel and tilt options for the machine operator. A 90-degree elbow is incorporated into this design for connecting to a horizontal tube. Swivel allows 300-degree maximum rotation. Tilt allows infinite adjustment from horizontal to 30 degrees. Maximum load is 66 lb. (30 kg).
