Description
Swivel Tilt for Pedestal, 8.00x8.00x8.00, Anodized, Aluminum
- Tilt allows forward and backward movement up to 30 degrees from horizontal
- Swivel allows 350-degree maximum rotation
- Integral stops at 30-degree increments between 60 degrees and 180 degrees of rotation
- Hardware and gasket to attach enclosure are included
- Do not use the swivel between an overhead support and an enclosure
PRODUCT ATTRIBUTES
- Height: 8 in / 203 mm
- Width: 8 in / 203 mm
- Depth: 8 in / 203 mm
- Material: Aluminum
- Max Enclosure Size: 838 x 610 x 610 mm / 33.0 x 24.00 x 24.00 in
- Max Load, Including Enclosure: 68 kg / 150 lb
- Color: Unpainted
- Finish: Anodized
- Thickness: 0.15 in / 3.81 mm
- Weight: 16.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS

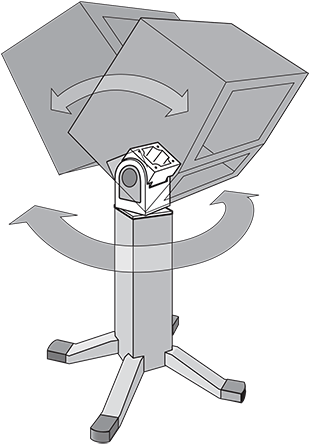

A swivel and tilt mechanism provides an easy way to rotate and tilt an HMI enclosure to a convenient operating position. It is designed for use between the bottom of an HMI enclosure and a pedestal (enclosure reinforcement may be required). Tilt lock has a large release knob that allows quick incremental adjustment. Swivel can be locked in any position for safe operation. A large center opening accommodates control cables that have attached plugs.
BULLETIN NUMBER
P1
