Description

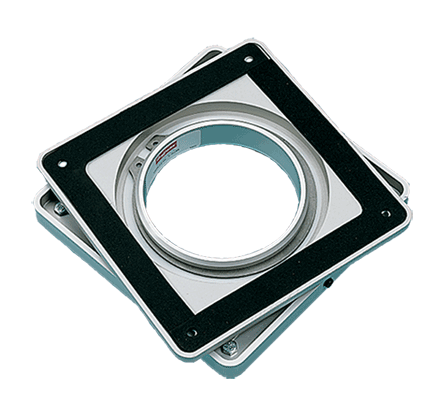

Swivel for Pedestal with 350-Degree Rotation, 1.06x4.00x4.00, Anodized, Aluminum
- Swivel allows 350-degree maximum rotation
- Hardware and gasket to attach enclosure are included
- ASWV88 has integral stops at 30-degree increments between 60 degrees and 180 degrees of rotation
- Do not use the swivel between an overhead support and an enclosure
PRODUCT ATTRIBUTES
- Height: 1.06 in / 27 mm
- Width: 4 in / 102 mm
- Depth: 4 in / 102 mm
- Material: Aluminum
- Max Enclosure Size: 610 x 610 x 406 mm / 24.00 x 24.00 x 16.00 in
- Max Load, Including Enclosure: 45.4 kg / 100 lb
- Color: Unpainted
- Finish: Anodized
- Thickness: 0.15 in / 3.81 mm
- Weight: 1.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
A swivel mechanism provides an easy way to rotate an HMI enclosure to a convenient operating position. It is designed for use between the bottom of an HMI enclosure and a pedestal. The swivel is low-profile and has a large center opening in addition to a large, wobble-free bearing surface. Swivel mechanism can be locked in any position for safe operation.
BULLETIN NUMBER
P1
