Description

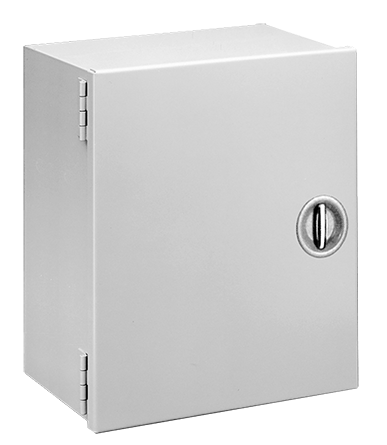

Hinged-Cover with Recessed Handle Type 1, 36.00x30.00x6.62, Gray, Steel
- Butt hinges on door
- Mounting holes on back of enclosure
- Flush cover and offset body
- Recessed T-handle latch is flush with door
PRODUCT ATTRIBUTES
- Height: 36 in / 914 mm
- Width: 30 in / 762 mm
- Depth: 6.63 in / 168 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Gauge: 14 ga
- Panel: A36N30MP
- Panel Gauge: 12
- Stud Quantity: 8
- Panel Size: 32.00 x 28.50 in / 813 x 724 mm
- Mounting: 33.50 x 22.75 in / 851 x 578 mm
- Weight: 66.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Medium Hinged-Cover with Recessed Handle, Type 1, have an easy-to-open recessed T-handle and meet basic functionality requirements for housing controls and instrumentation.
Purchase panels separately.
BULLETIN NUMBER
A1M
