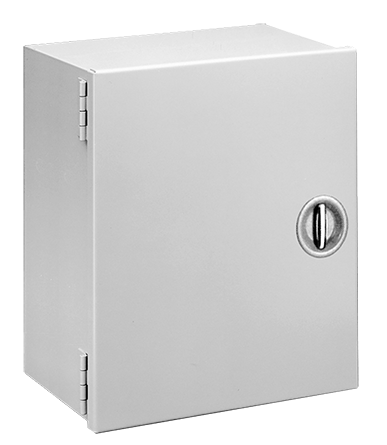

Hinged-Cover with Recessed Handle, Type 1, 30.00x20.00x6.62, Gray, Steel
- Butt hinges on door
- Mounting holes on back of enclosure
- Flush cover and offset body
- Recessed T-handle latch is flush with door
PRODUCT ATTRIBUTES
- Height: 30 in / 762 mm
- Width: 20 in / 508 mm
- Depth: 6.63 in / 168 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Gauge: 14 ga
- Panel: A30N20MP
- Panel Gauge: 12
- Stud Quantity: 6
- Panel Size: 26.00 x 18.50 in / 660 x 470 mm
- Mounting: 27.50 x 12.75 in / 699 x 324 mm
- Weight: 44.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Medium Hinged-Cover with Recessed Handle, Type 1, have an easy-to-open recessed T-handle and meet basic functionality requirements for housing controls and instrumentation.
Purchase panels separately.
BULLETIN NUMBER
A1M
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No. 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File No. 42184: Type 1
IEC 60529, IP30
