Description

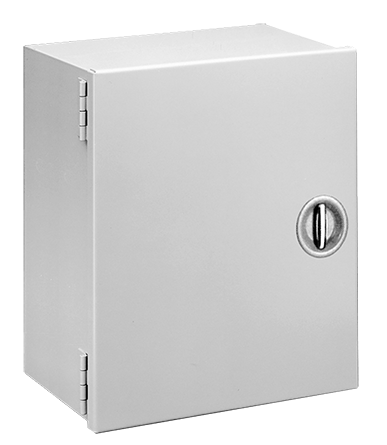

Hinged-Cover with Recessed Handle, Type 1, 24.00x24.00x12.62, Gray, Steel
- Butt hinges on door
- Mounting holes on back of enclosure
- Flush cover and offset body
- Recessed T-handle latch is flush with door
PRODUCT ATTRIBUTES
- Height: 24 in / 610 mm
- Width: 24 in / 610 mm
- Depth: 12.63 in / 321 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Gauge: 14 ga
- Panel: A24N24MP
- Panel Gauge: 12
- Stud Quantity: 4
- Panel Size: 21.00 x 22.50 in / 533 x 572 mm
- Mounting: 21.88 x 19.00 in / 556 x 483 mm
- Weight: 54 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Medium Hinged-Cover with Recessed Handle, Type 1, have an easy-to-open recessed T-handle and meet basic functionality requirements for housing controls and instrumentation.
Purchase panels separately.
BULLETIN NUMBER
A1M
