Product Overview

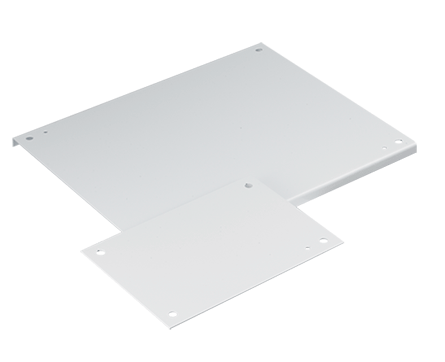

Panel for Type 3R, 4, 4X, 12 and 13 Enclosure, fits 20x20, SS Type 316
- Panel mounting hardware is furnished with all enclosures which accept these panels
PRODUCT ATTRIBUTES
- Height: 17 in / 432 mm
- Width: 17 in / 432 mm
- Material: Stainless Steel 316L
- Finish: Brushed
- Color: Unpainted
- Thickness: 12 ga / 2.66 mm
- Panel Size: 17.00 x 17.00 in / 432 x 432 mm
- Panel Gauge: 12 ga.
- Edge Flange Quantity: 0
- Hole Quantity: 4
- Weight: 8.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Use these panels in Wall-Mount and Free-stand/Floor-Mount Enclosure. Available in various materials to meet various application requirements. Stainless steel and aluminum panels are protected on one side with a plastic film.
BULLETIN NUMBER
PNLWM
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
