Description

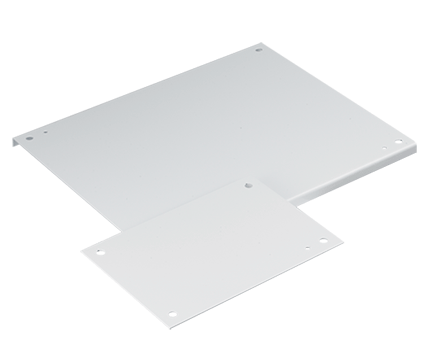

Panel for Type 3R, 4, 4X, 12 and 13 Enclosure, fits 30x30, SS Type 316
- Panel mounting hardware is furnished with all enclosures which accept these panels
PRODUCT ATTRIBUTES
- Height: 27 in / 686 mm
- Width: 27 in / 686 mm
- Material: Stainless Steel 316L
- Finish: Brushed
- Color: Unpainted
- Thickness: 12 ga / 2.66 mm
- Panel Size: 27.00 x 27.00 in / 686 x 686 mm
- Panel Gauge: 12 ga.
- Edge Flange Quantity: 4
- Hole Quantity: 4
- Weight: 23 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Use these panels in Wall-Mount and Free-stand/Floor-Mount Enclosure. Available in various materials to meet various application requirements. Stainless steel and aluminum panels are protected on one side with a plastic film.
BULLETIN NUMBER
PNLWM
