Description

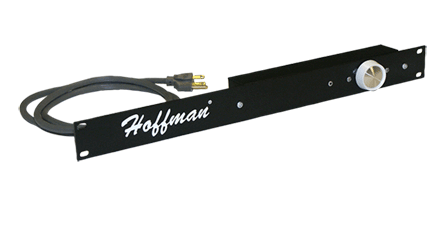

Rack-Mount Fan Speed Control, 120v 50/60Hz, Steel
- Continuously variable fan speed control knob with minimum speed adjustment
- Uses one RU rack space
- Steel construction
- Two NEMA 5-15R outlets provide power to fan
- Six-foot (1.83-m) power cord plugs into standard 120 V 60 Hz outlet
PRODUCT ATTRIBUTES
- Height: 1.72 in / 43.688 mm
- Width: 19 in / 482.6 mm
- Depth: 3 in / 76.2 mm
- Material: Mild Steel
- Max Current: 4 A
- Max Temperature: 113 °F / 45 °C
- Voltage AC: 100 - 120 VAC
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 2.6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Perfect for offices, classrooms and other noise-sensitive areas, fan Speed Control optimizes airflow in a cabinet or rack, balancing air volume requirements with noise level and power use.
BULLETIN NUMBER
DTHRM
