Description
Belden 9904 010500 Lead Wire, #4 Str TC, PVC Ins, AWM 1283 AWM 1015
Low Temp Plastic Lead Wire, 4AWG (133x25) Tinned Copper, PVC Insulation, AWM 1283 AWM 1015 CSA TYPE TEW 600V 105C
Ordering Details
- Manufacturer Part Number: 9904 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825260356
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

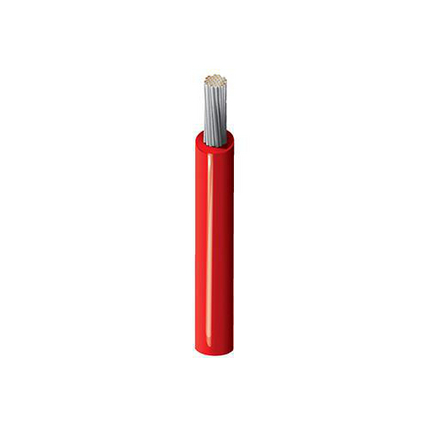

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire
Construction Details
- Size: 4; Stranding: 133x25; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.063 in (1.6 mm); Nom. Insulation Diameter: 0.392 in (9.96 mm)
- Overall Cable Diameter (Nominal): 0.392 in (9.96 mm)
Electrical Characteristics
- Nom. Conductor DCR: 0.27 Ohm/1000ft (0.89 Ohm/km); Max. Current: Single conductor in free air @ 30ºC: 160 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C
- Bulk Cable Weight: 193 lbs/1000ft (287 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 310, MTW
- AWM Compliance: AWM 1015, AWM 1283
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.383 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP.
