Description
Belden 8910 010500 Lead Wire, #10 Str TC, PVC Ins, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 10AWG (105x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C
Ordering Details
- Manufacturer Part Number: 8910 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825218258
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

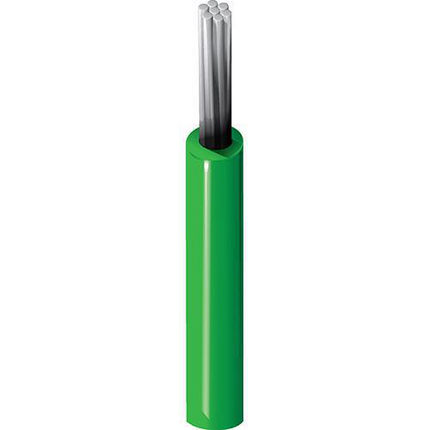

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire
Construction Details
- Size: 10; Stranding: 105x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.176 in (4.47 mm)
- Overall Cable Diameter (Nominal): 0.176 in (4.47 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Bulk Cable Weight: 44.1 lbs/1000ft (65.6 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 310, MTW or TW
- AWM Compliance: AWM 1015, AWM 1230, CSA AWM I A/B
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.368 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP.
