Belden 9904 002500 Lead Wire, #4 Str TC, PVC Ins, AWM 1283 AWM 1015 - Red, 500 ft Reel

$5,680.99
SKU:
9904 002500
Shipping:
Calculated at Checkout
Color:
Red
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9904
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9904 002500 Lead Wire, #4 Str TC, PVC Ins, AWM 1283 AWM 1015

Low Temp Plastic Lead Wire, 4AWG (133x25) Tinned Copper, PVC Insulation, AWM 1283 AWM 1015 CSA TYPE TEW 600V 105C

Ordering Details

  • Manufacturer Part Number: 9904 002500
  • Color: Red
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825260325
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

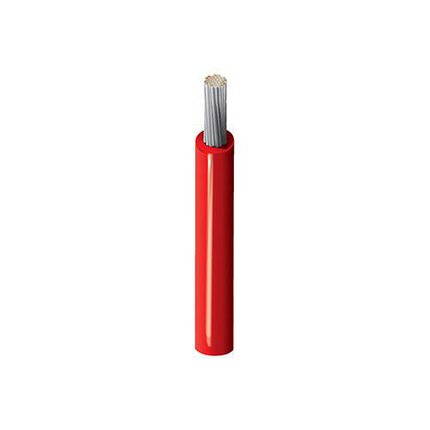

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Construction Details

  • Size: 4; Stranding: 133x25; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.063 in (1.6 mm); Nom. Insulation Diameter: 0.392 in (9.96 mm)
  • Overall Cable Diameter (Nominal): 0.392 in (9.96 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 0.27 Ohm/1000ft (0.89 Ohm/km); Max. Current: Single conductor in free air @ 30ºC: 160 A
  • UL Voltage Rating: 600 V RMS

Mechanical Characteristics

  • UL Temperature: 105°C
  • Bulk Cable Weight: 193 lbs/1000ft (287 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: Article 310, MTW
  • AWM Compliance: AWM 1015, AWM 1283
  • CEC / C(UL) Compliance: TEW
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

  • Update and Revision: Revision Number: 0.383 Revision Date: 10-27-2026
  • Footnote: C - CRATE REEL PUT-UP.
