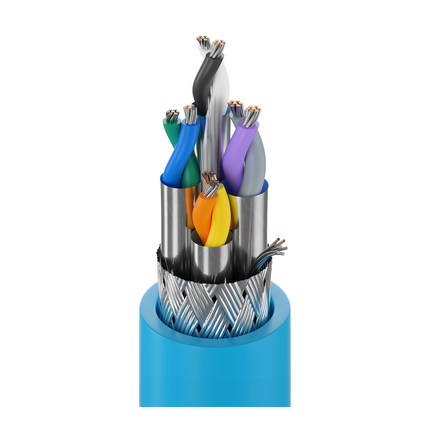

Belden 9891 0065000 Transceiver 10BASE5, #22-3pr, #20-1pr, FHDPE, Indiv. Foil shielded pairs w/ OA Brd, PVC Jkt, CM - Blue

$81,901.99
SKU:
9891 0065000
Shipping:
Calculated at Checkout
Color:
Blue
Manufacturer Status:
Active
Product Family:
9891
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9891 0065000 Transceiver 10BASE5, #22-3pr, #20-1pr, FHDPE, Indiv. Foil shielded pairs w/ OA Brd, PVC Jkt, CM

IEEE 802.3 Ethernet Transceiver 10BASE5, 20 and 22 AWG stranded tinned copper conductors, foam high-density polyethylene (22 AWG) and PVC (20 AWG) insulation, twisted pairs, Individually foil shielded pairs with overall tinned copper braid shield (95% coverage) drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9891 0065000
  • Color: Blue
  • UPC/EAN: 612825260097
  • Manufacturer Footnote: C Z

Product Overview

  • Suitable Applications: IEEE 802.3 Transceiver Cable

Construction Details

  • Element: Data Pair(s); Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper; No. of Pairs: 3
  • Element: Pair(s); Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper; No. of Pairs: 1
  • Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.063 in (1.6 mm); Color Code: Yellow & Orange, Blue & Green, Black & White; Notes: HDPE
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Gray & Purple
  • Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Notes: Foil Out
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Notes: Foil Out
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.316 in (8.03 mm)
  • Overall Cable Diameter (Nominal): 0.316 in (8.03 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Characteristic Impedance: 78 Ohm
  • Element: Pair(s)
  • Max. Delay Skew: 78 ns/100m; Nom. Velocity of Prop.: 78%
  • UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 3.2 in (81 mm); Installation Min.: 3.2 in (81 mm)
  • Max. Pull Tension: 160 lbs (73 kg)
  • Bulk Cable Weight: 65 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • IEEE Compliance: IEEE 802.3 10Base5
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.576 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
