Description

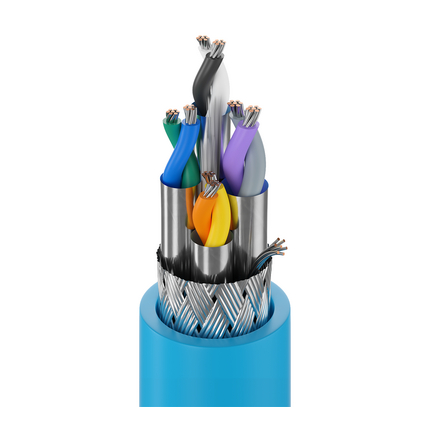

Belden 9891 006100 Transceiver 10BASE5, #22-3pr, #20-1pr, FHDPE, Indiv. Foil shielded pairs w/ OA Brd, PVC Jkt, CM
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 and 22 AWG stranded tinned copper conductors, foam high-density polyethylene (22 AWG) and PVC (20 AWG) insulation, twisted pairs, Individually foil shielded pairs with overall tinned copper braid shield (95% coverage) drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9891 006100
- Color: Blue
- UPC/EAN: 612825260066
Product Overview
- Suitable Applications: IEEE 802.3 Transceiver Cable
Construction Details
- Element: Data Pair(s); Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper; No. of Pairs: 3
- Element: Pair(s); Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper; No. of Pairs: 1
- Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.063 in (1.6 mm); Color Code: Yellow & Orange, Blue & Green, Black & White; Notes: HDPE
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Gray & Purple
- Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Notes: Foil Out
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Notes: Foil Out
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.316 in (8.03 mm)
- Overall Cable Diameter (Nominal): 0.316 in (8.03 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Characteristic Impedance: 78 Ohm
- Element: Pair(s)
- Max. Delay Skew: 78 ns/100m; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CM), 30 V (AWM 2919)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 3.2 in (81 mm); Installation Min.: 3.2 in (81 mm)
- Max. Pull Tension: 160 lbs (73 kg)
- Bulk Cable Weight: 65 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2919
- CEC / C(UL) Compliance: CM
- IEEE Compliance: IEEE 802.3 10Base5
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.576 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
