Belden 9903 E4X500 Transceiver 10BASE5, #28-3pr, #24-1pr, PO, Isolated Shields, PVC Jkt, CMG - Gray, Light Dec

$3,164.99
SKU:
9903 E4X500
Shipping:
Calculated at Checkout
Color:
Gray, Light Dec
Manufacturer Status:
Active
Product Family:
9903
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9903 E4X500 Transceiver 10BASE5, #28-3pr, #24-1pr, PO, Isolated Shields, PVC Jkt, CMG

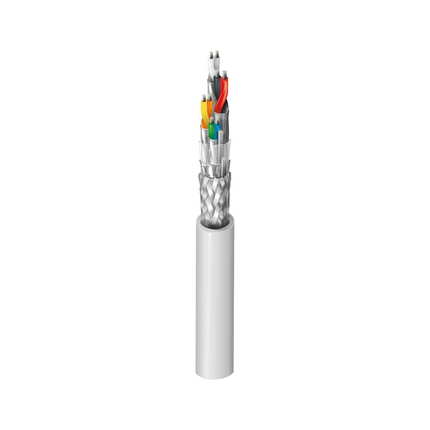

IEEE 802.3 Ethernet Transceiver 10BASE5, 28 and 24 AWG stranded tinned copper conductors, polypropylene insulation, #28-3, #24-1 twisted pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (92% coverage), drain wire, light gray PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9903 E4X500
  • Color: Gray, Light Dec
  • UPC/EAN: 612825260295

Product Overview

  • Suitable Applications: IEEE 802.3 Transceiver Cable

Construction Details

  • Element: Pair(s); Size: 28; Stranding: 7x36; Material: TC - Tinned Copper; No. of Pairs: 3
  • Element: Pair(s); Size: 24; Stranding: 7x32; Material: TC - Tinned Copper; No. of Pairs: 1
  • Material: PP - Polypropylene; Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: Gray & White, Yellow & Orange, Blue & Green, Black & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
  • Separator: Polyester Tape; Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.25 in (6.4 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Characteristic Impedance: 78 Ohm
  • Element: Pair(s)
  • Max. Delay Skew: 66 ns/100m; Nom. Velocity of Prop.: 66%
  • UL Voltage Rating: 30 V (AWM 2919), 300 V (CMG)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C To +80°C
  • Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
  • Max. Pull Tension: 68 lbs (31 kg)
  • Bulk Cable Weight: 39 lbs/1000ft

Standards and Compliance

  • Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CMG
  • IEEE Compliance: IEEE 802.3
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Polyester separator tape over pairs

History

  • Update and Revision: Revision Number: 0.494 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
