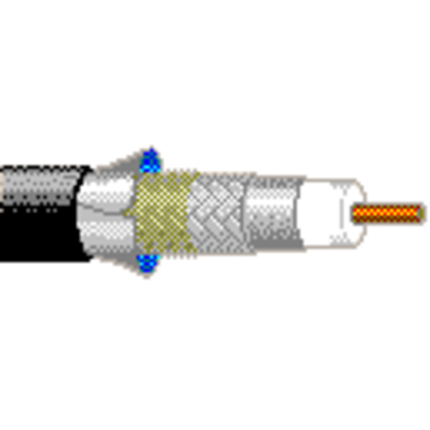

Belden 9764 0101000 CATV Video, RG11, 14 AWG BCCS, Tri Shield, Polyethylene Jacket - Black, 1,000 ft Reel

$597.99
SKU:
9764 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9764
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9764 0101000 CATV Video, RG11, 14 AWG BCCS, Tri Shield, Polyethylene Jacket

CATV, Series 11, 14 AWG solid .064" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond Plus®; aluminum braid shield (75% coverage), polyethylene jacket.

Ordering Details

  • Manufacturer Part Number: 9764 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825258452

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 11
  • Series Type: 11
  • Size: 14; Stranding: Solid; Nom. Diameter: 0.064 in; Material: BCCS - Bare Copper Covered Steel
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.28 in (7.1 mm)
  • Insulation Table Notes: Gas Injected
  • Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Aluminum; Coverage: 75%
  • Layer: 3; Outer Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Outer Shield Table Notes: Tape has shorting fold and is bonded to jacket
  • Material: PE - Polyethylene; Nom. Diameter: 0.4 in

Electrical Characteristics

  • Frequency: 5-1000 MHz; Min. Structural Return Loss: 20 dB
  • Max. Attenuation: 0.38 dB/100ft
  • Max. Attenuation: 0.96 dB/100ft
  • Max. Attenuation: 1.9 dB/100ft
  • Max. Attenuation: 2.13 dB/100ft
  • Max. Attenuation: 2.25 dB/100ft
  • Max. Attenuation: 2.42 dB/100ft
  • Max. Attenuation: 2.6 dB/100ft
  • Max. Attenuation: 2.75 dB/100ft
  • Max. Attenuation: 3.04 dB/100ft
  • Max. Attenuation: 3.65 dB/100ft
  • Max. Attenuation: 4.06 dB/100ft
  • Max. Attenuation: 4.35 dB/100ft
  • Nom. Conductor DCR: 11 Ohm/1000ft (36 Ohm/km); Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.2 pF/ft (53.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 83%
  • Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: -55°C To +80°C
  • Max. Pull Tension: 276 lbs (125 kg)
  • Bulk Cable Weight: 52 lbs/1000ft (77 kg/km)

Standards and Compliance

  • Environmental Suitability: Outdoor - Water Exposure, Indoor, Outdoor, Burial
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.384 Revision Date: 11-06-2026

Resources

Belden 9764 Product Information
